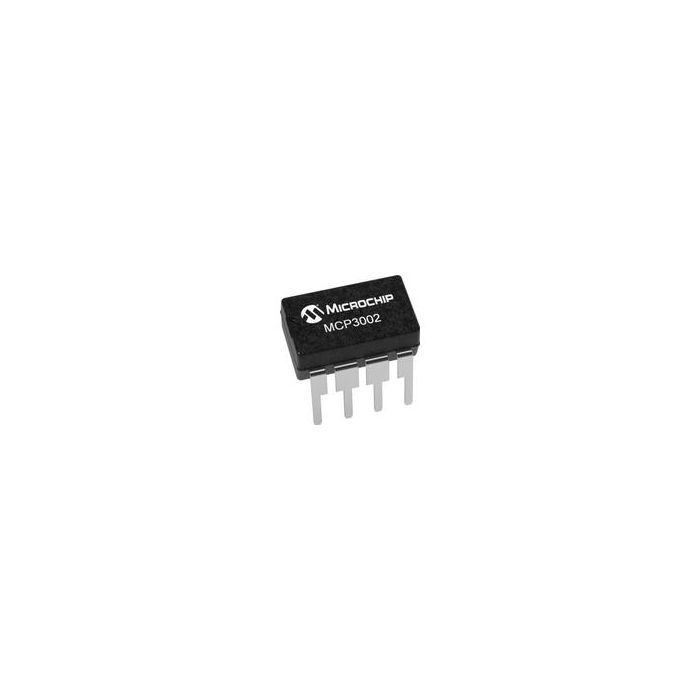

MCP3002-I/P

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP3002-I_P_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP3002-I/P

2-Channel Single ADC SAR 200ksps 10-bit Serial Automotive 8-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 187
  • Inventory 11
  • PCNs 69
  • GIDEP-Alerts 7
  • MaskPart MCP3002IP%
  • IntroductionDate Mar 22, 2000

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±1LSB
  • Digital Interface Type Serial (3-Wire, SPI)
  • Digital Supply Support No
  • Full Scale Error ±1LSB
  • Input Signal Type Single-Ended|Pseudo-Differential
  • Input Type Voltage
  • Input Voltage 5V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Positive Supply Voltage (V) 5.5
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Positive Supply Voltage (V) 2.7
  • Minimum Single Supply Voltage (V) 2.7
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 2|1
  • Polarity of Input Voltage Unipolar
  • Resolution 10bit
  • Sample and Hold Yes
  • Sampling Rate 200ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Industrial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 2-Channel Single ADC SAR 200ksps 10-bit Serial Automotive 8-Pin PDIP Tube
