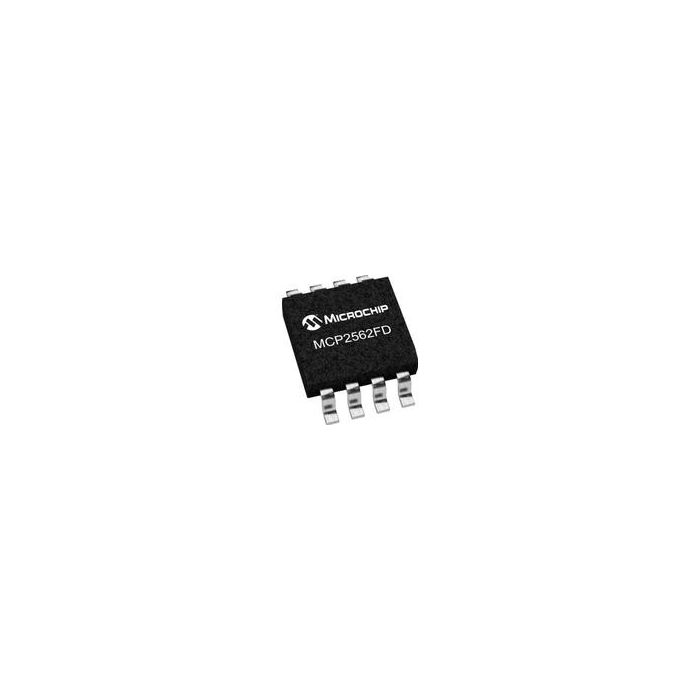

MCP2562FDT-H/SN

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP2562FDT-H_SN_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP2562FDT-H/SN

CAN 8Mbps Normal/Standby 3.3V/5V Automotive 8-Pin SOIC N T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 82
  • Inventory 3
  • PCNs 51
  • GIDEP-Alerts 6
  • MaskPart MCP2562FDHSN%
  • IntroductionDate Mar 25, 2014

Parametry

  • Category Transceiver
  • Maximum Data Rate 8Mbps
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 150
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 70
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Number of Transceivers 1
  • Power Down Mode Normal|Standby
  • Standard Supported ISO 11898-2|ISO 11898-5
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description CAN 8Mbps Normal/Standby 3.3V/5V Automotive 8-Pin SOIC N T/R
