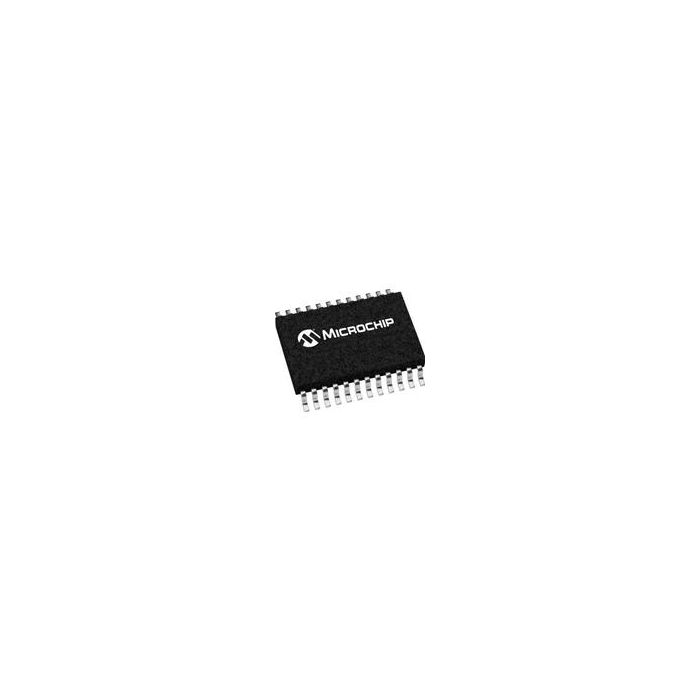

MCP23S18T-E/SS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP23S18T-E_SS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP23S18T-E/SS

SPI Interface 10000kHz 5.5V Automotive 24-Pin SSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 4
  • PCNs 50
  • MaskPart MCP23S18ESS%
  • IntroductionDate Sep 29, 2008

Parametry

  • I2C Bus Interface Mode N/R
  • Interface Speed (kHz) 10000
  • Interface Type SPI
  • Interrupt Output Yes
  • Manual Reset Yes
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Quiescent Current (uA) 6
  • Maximum Sink Current per Bit (mA) 25
  • Maximum Source Current per Bit (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Addresses 8
  • Number of I/Os 16
  • Output Type Open Drain
  • Supplier Temperature Grade Extended

Więcej informacji

Do pobrania Download
Main description SPI Interface 10000kHz 5.5V Automotive 24-Pin SSOP T/R
