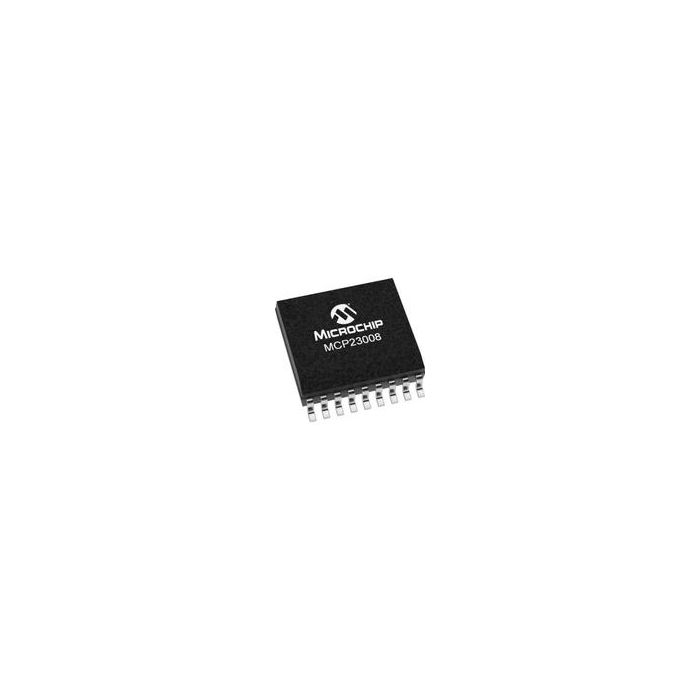

MCP23008-E/SO

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP23008-E_SO_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP23008-E/SO

I2C Interface 1700kHz 5.5V 18-Pin SOIC W Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 13
  • PCNs 63
  • GIDEP-Alerts 11
  • MaskPart MCP23008%ESO
  • IntroductionDate Dec 16, 2004

Parametry

  • I2C Bus Interface Mode Standard Mode|Fast Mode|Fast Mode Plus
  • Interface Speed (kHz) 1700
  • Interface Type I2C
  • Interrupt Output Yes
  • Manual Reset Yes
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Quiescent Current (uA) 1
  • Maximum Sink Current per Bit (mA) N/A
  • Maximum Source Current per Bit (mA) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Addresses 8
  • Number of I/Os 8
  • Output Type Quasi Bidirectional
  • Supplier Temperature Grade Extended
  • Tolerant I/Os (V) N/A

Więcej informacji

Do pobrania Download
Main description I2C Interface 1700kHz 5.5V 18-Pin SOIC W Tube
