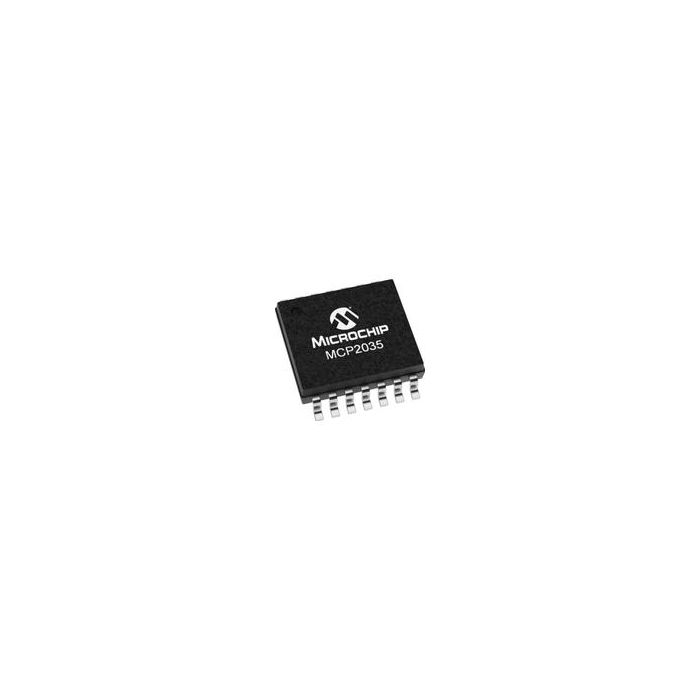

MCP2035T-I/ST

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP2035T-I_ST_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP2035T-I/ST

AFE General Purpose 1 ADC 3V Automotive 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 14
  • Inventory 3*
  • PCNs 55
  • GIDEP-Alerts 6
  • MaskPart MCP2035IST%
  • IntroductionDate May 02, 2012

Parametry

  • Category General Purpose
  • Interface Type Serial (3-Wire, SPI)
  • Maximum Input Voltage Range N/A
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of ADC Inputs 1
  • Number of ADCs 1
  • Number of Channels per Chip 1
  • Power Supply Type Analog
  • Resolution (bit) N/A
  • Sampling Rate (ksps) 10(Max)
  • Supplier Temperature Grade Industrial
  • Type General Purpose
  • Typical Operating Supply Voltage (V) 3
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description AFE General Purpose 1 ADC 3V Automotive 14-Pin TSSOP T/R
