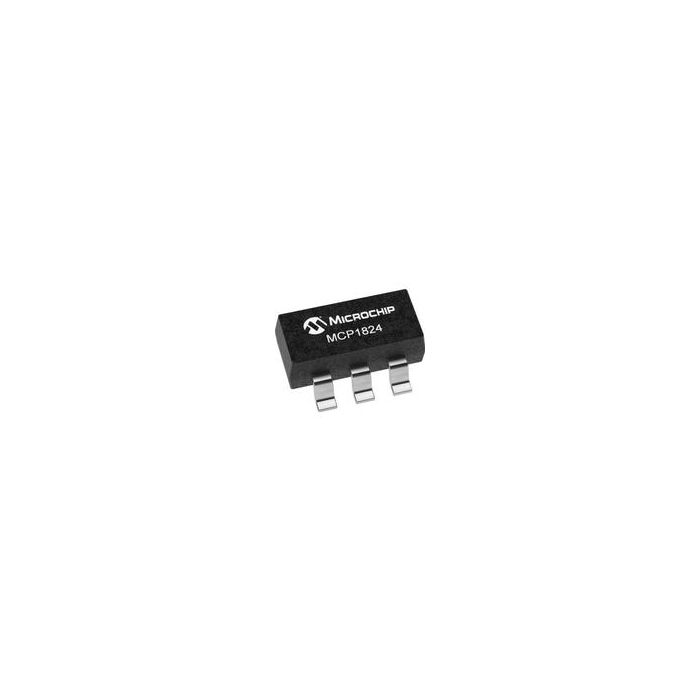

MCP1824T-0802E/OT

Opis / MCP1824T-0802E/OT

LDO Regulator Pos 0.8V 0.3A Automotive 5-Pin SOT-23 T/R

Informacje podstawowe

Accuracy (%) ±2.5
Junction to Ambient 256°C/W(Typ)
Junction to Case 81°C/W(Typ)
Line Regulation 0.05%/V(Typ)
Load Regulation 0.5%(Typ)
Maximum Dropout Voltage @ Current (V) 0.32@300mA
Maximum Input Voltage (V) 6
Maximum Operating Temperature (°C) 125
Maximum Output Current (A) 0.3(Min)
Maximum Power Dissipation (mW) N/A
Maximum Quiescent Current (mA) 0.22
Maximum Storage Temperature (°C) 150
Minimum Input Voltage (V) 2.1
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Noise Spectral Density (uV/rtHz) 2@1kHz
Number of Outputs 1
Output Capacitor Type Ceramic
Output Type Fixed
Output Voltage (V) 0.8
Output Voltage Range (V)
Pass Element Type PMOS
Polarity Positive
Reference Voltage (V) N/A
Special Features Current Limit|Good Power Signal|Short Circuit Protection|Thermal Protection
Supplier Temperature Grade N/A
Type LDO
Typical Bias Voltage (VDC) N/A
Typical Dropout Voltage @ Current (V) 0.2@300mA
Typical Ground Current @ Full Load (mA) N/A
Typical Output Capacitance (uF) 1
Typical Output Noise Voltage (uVrms) N/A
Typical PSRR (dB) 55
Typical Power Dissipation (mW) N/A
Typical Quiescent Current (mA) 0.12

Więcej informacji

Do pobrania	Download
Main description	LDO Regulator Pos 0.8V 0.3A Automotive 5-Pin SOT-23 T/R
