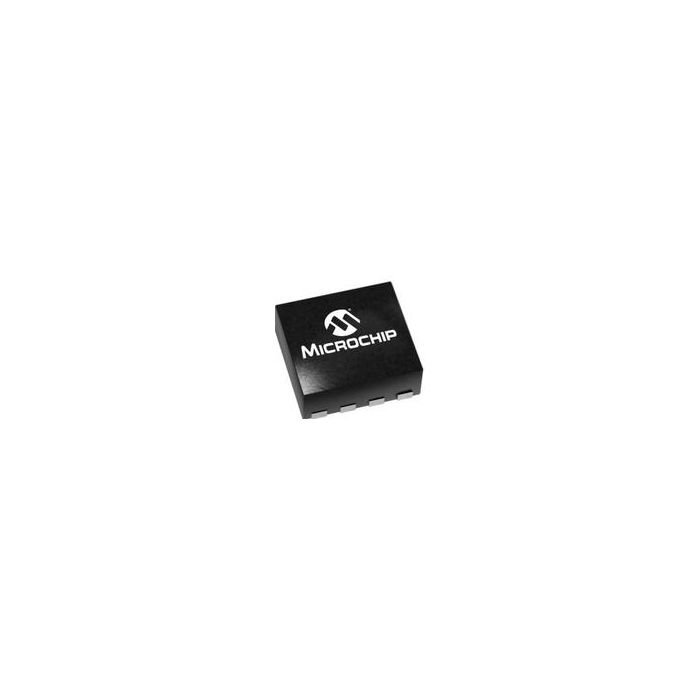

MCP1810T-30I/J8A

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1810T-30I_J8A_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1810T-30I/J8A

LDO Regulator Pos 3V 0.15A 8-Pin VDFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 502
  • Inventory 9
  • PCNs 46
  • GIDEP-Alerts 1
  • MaskPart MCP1810T30IJ8A%

Parametry

  • Accuracy (%) N/A
  • Junction to Ambient 73.1°C/W(Typ)
  • Junction to Case 10.7°C/W(Typ)
  • Line Regulation 4%/V
  • Load Regulation 1%(Typ)
  • Maximum Dropout Voltage @ Current (V) 0.38@150mA
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.15
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 0.00005
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Noise Spectral Density (uV/rtHz) 0.48@1kHz
  • Number of Outputs 1
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 3
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type N/A
  • Polarity Positive
  • Process Technology N/A
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Shutdown
  • Supplier Temperature Grade Industrial
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) N/A
  • Typical Ground Current @ Full Load (mA) 0.2
  • Typical Output Capacitance (uF) 1
  • Typical Output Noise Voltage (uVrms) 48
  • Typical PSRR (dB) 40
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.00002

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 3V 0.15A 8-Pin VDFN EP T/R
