MCP17913002E/ET
| Do pobrania | Download |
|---|---|

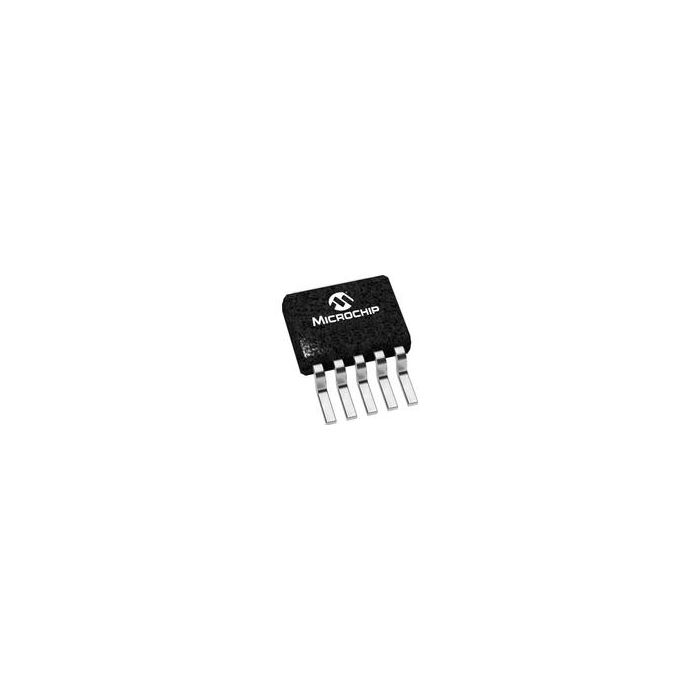

| Main description | LDO Regulator Pos 3V 0.07A Automotive 6-Pin(5+Tab) DDPAK Tube |
LDO Regulator Pos 3V 0.07A Automotive 6-Pin(5+Tab) DDPAK Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 51
- Inventory 3
- PCNs 54
- GIDEP-Alerts 2
- MaskPart MCP17913002EET%
- IntroductionDate Mar 20, 2008
Parametry
- Accuracy (%) ±2.5
- Junction to Ambient 31.4°C/W(Typ)
- Junction to Case 3°C/W(Typ)
- Line Regulation ±0.0002%/V(Typ)
- Load Regulation ±0.2%(Typ)
- Maximum Dropout Voltage @ Current (V) 1.3@70mA
- Maximum Input Voltage (V) 30
- Maximum Output Current (A) 0.07(Min)
- Maximum Power Dissipation (mW) N/A
- Maximum Quiescent Current (mA) 0.13
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 6
- Minimum Storage Temperature (°C) -55
- Noise Spectral Density (uV/rtHz) 1.2@1kHz
- Number of Outputs 1
- Output Capacitor Type Ceramic|Tantalum
- Output Type Fixed
- Output Voltage (V) 3
- Output Voltage Range (V) 1.8 to 10
- Pass Element Type N/A
- Polarity Positive
- Reference Voltage (V) N/A
- Special Features Current Limit|Short Circuit Protection|Thermal Protection
- Supplier Temperature Grade Extended
- Type LDO
- Typical Bias Voltage (VDC) N/A
- Typical Dropout Voltage @ Current (V) 0.7@70mA
- Typical Ground Current @ Full Load (mA) 0.11
- Typical Output Capacitance (uF) 1 to 1000|4.7 to 1000
- Typical Output Noise Voltage (uVrms) N/A
- Typical PSRR (dB) 90
- Typical Power Dissipation (mW) N/A
- Typical Quiescent Current (mA) 0.07
