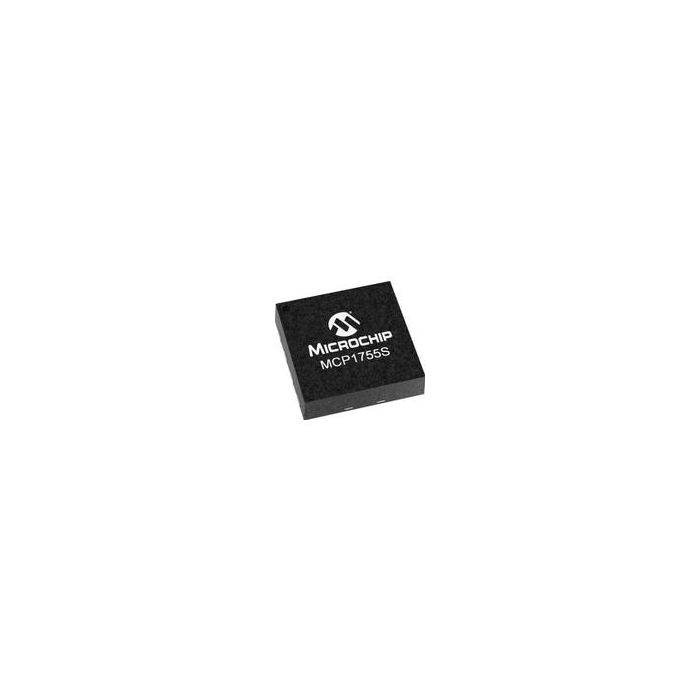

MCP1755S-3302E/MC

Opis / MCP1755S-3302E/MC

LDO Regulator Pos 3.3V 0.3A Automotive 8-Pin DFN EP Tube

Informacje podstawowe

Accuracy (%) ±2
Junction to Ambient 70°C/W
Junction to Case 13.4°C/W
Line Regulation 0.01%/V(Typ)
Load Regulation 0.1%(Typ)
Maximum Dropout Voltage @ Current (V) 0.5@300mA
Maximum Input Voltage (V) 16
Maximum Operating Temperature (°C) 125
Maximum Output Current (A) 0.3
Maximum Power Dissipation (mW) N/A
Maximum Quiescent Current (mA) 0.1
Maximum Storage Temperature (°C) 150
Minimum Input Voltage (V) 3.6
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -55
Noise Spectral Density (uV/rtHz) 0.3@1kHz
Number of Outputs 1
Output Capacitor Type Ceramic
Output Type Fixed
Output Voltage (V) 3.3
Output Voltage Range (V) 1.8 to 10
Pass Element Type PMOS
Polarity Positive
Reference Voltage (V) N/A
Special Features Current Limit|Short Circuit Protection|Shutdown|Thermal Protection
Supplier Temperature Grade N/A
Type LDO
Typical Bias Voltage (VDC) N/A
Typical Dropout Voltage @ Current (V) 0.3@300mA
Typical Ground Current @ Full Load (mA) 0.3
Typical Output Capacitance (uF) 1
Typical Output Noise Voltage (uVrms) N/A
Typical PSRR (dB) 80
Typical Power Dissipation (mW) N/A
Typical Quiescent Current (mA) 0.068

Więcej informacji

Do pobrania	Download
Main description	LDO Regulator Pos 3.3V 0.3A Automotive 8-Pin DFN EP Tube
