MCP17271202E/MF

Opis / MCP17271202E/MF

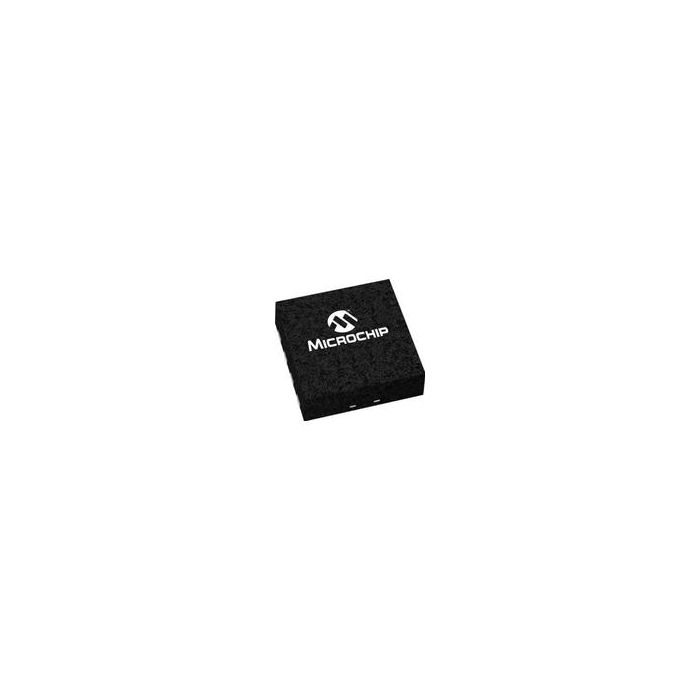

LDO Regulator Pos 1.2V 1.5A Automotive 8-Pin DFN EP Tube

Informacje podstawowe

Accuracy (%) ±2
Junction to Ambient 41°C/W(Typ)
Junction to Case N/A
Line Regulation 0.05%/V(Typ)
Load Regulation 0.5%(Typ)
Maximum Dropout Voltage @ Current (V) 0.55@1.5A
Maximum Input Voltage (V) 6
Maximum Operating Temperature (°C) 125
Maximum Output Current (A) 1.5(Min)
Maximum Power Dissipation (mW) N/A
Maximum Quiescent Current (mA) 0.22
Maximum Storage Temperature (°C) 150
Minimum Input Voltage (V) 2.3
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Noise Spectral Density (uV/rtHz) 2@1kHz
Number of Outputs 1
Output Capacitor Type Ceramic
Output Type Fixed
Output Voltage (V) 1.2
Output Voltage Range (V)
Pass Element Type N/A
Polarity Positive
Reference Voltage (V) N/A
Special Features Current Limit|Short Circuit Protection|Thermal Shutdown Protection
Supplier Temperature Grade Extended
Type LDO
Typical Bias Voltage (VDC) N/A
Typical Dropout Voltage @ Current (V) 0.33@1.5A
Typical Ground Current @ Full Load (mA) N/A
Typical Output Capacitance (uF) 1
Typical Output Noise Voltage (uVrms) N/A
Typical PSRR (dB) 60
Typical Power Dissipation (mW) N/A
Typical Quiescent Current (mA) 0.12

Więcej informacji

Do pobrania	Download
Main description	LDO Regulator Pos 1.2V 1.5A Automotive 8-Pin DFN EP Tube
