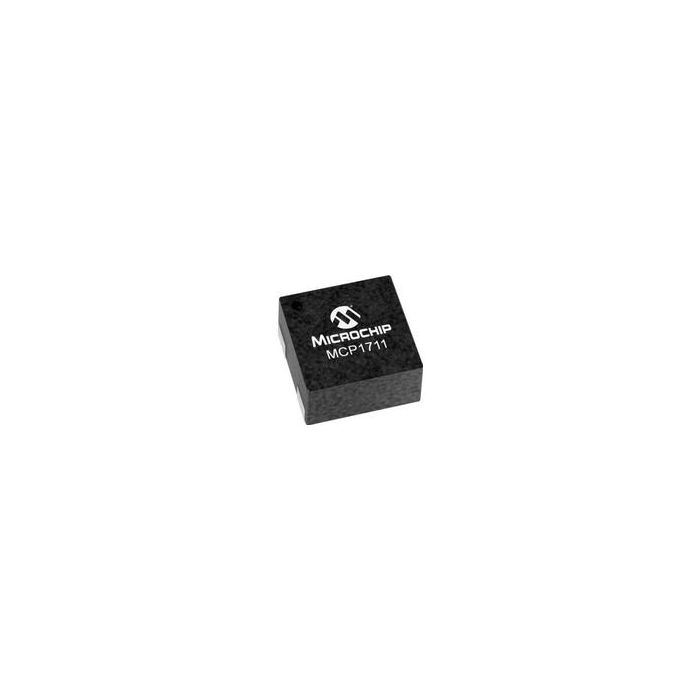

MCP1711T-22I/5X

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1711T-22I_5X_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1711T-22I/5X

LDO Regulator Pos 2.2V 0.15A 4-Pin UQFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 191
  • Inventory 5
  • PCNs 49
  • GIDEP-Alerts 1
  • MaskPart MCP1711T22I5X%

Parametry

  • Accuracy (%) N/A
  • Junction to Ambient 181.82°C/W(Typ)
  • Junction to Case 15°C/W(Typ)
  • Line Regulation 0.19%/V
  • Load Regulation 50mV
  • Maximum Dropout Voltage @ Current (V) 0.47@50mA|1.05@150mA
  • Maximum Input Voltage (V) 6
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.15(Min)
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 0.0018
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) 1.4
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type Ceramic
  • Output Type Fixed
  • Output Voltage (V) 2.2
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type N/A
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Current Limit|Short Circuit Protection
  • Supplier Temperature Grade Industrial
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) 0.31@50mA|0.75@150mA
  • Typical Ground Current @ Full Load (mA) N/A
  • Typical Output Capacitance (uF) N/A
  • Typical Output Noise Voltage (uVrms) 30
  • Typical PSRR (dB) N/A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 2.2V 0.15A 4-Pin UQFN EP T/R
