MCP1703AT-2052E/MB

Opis / MCP1703AT-2052E/MB

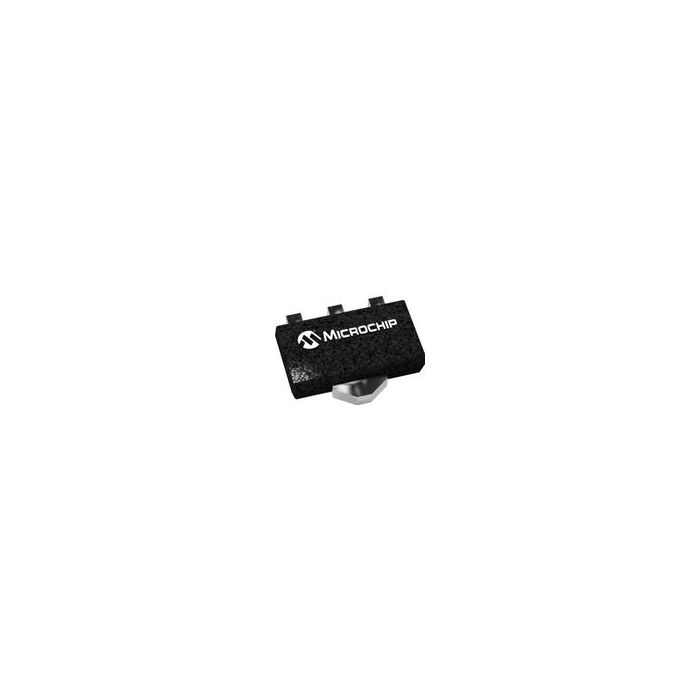

LDO Regulator Pos 2.05V 0.23A 4-Pin(3+Tab) SOT-89

Informacje podstawowe

Accuracy (%) ±2
Junction to Ambient 180°C/W(Typ)
Junction to Case 52°C/W(Typ)
Line Regulation 0.1%/V(Typ)
Load Regulation 1%(Typ)
Maximum Dropout Voltage @ Current (V) N/A
Maximum Input Voltage (V) 16
Maximum Operating Temperature (°C) 125
Maximum Output Current (A) 0.23(Typ)
Maximum Power Dissipation (mW) N/A
Maximum Quiescent Current (mA) 0.005
Maximum Storage Temperature (°C) 150
Minimum Input Voltage (V) 2.7
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Noise Spectral Density (uV/rtHz) 1@1kHz
Number of Outputs 1
Output Capacitor Type Ceramic
Output Type Fixed
Output Voltage (V) 2.05
Output Voltage Range (V) 1.8 to 10
Pass Element Type PMOS
Polarity Positive
Reference Voltage (V) N/A
Special Features Current Limit|Short Circuit Protection|Thermal Shutdown Protection
Supplier Temperature Grade Extended
Type LDO
Typical Bias Voltage (VDC) N/A
Typical Dropout Voltage @ Current (V) N/A
Typical Ground Current @ Full Load (mA) N/A
Typical Output Capacitance (uF) 1 to 22
Typical Output Noise Voltage (uVrms) N/A
Typical PSRR (dB) 35
Typical Power Dissipation (mW) N/A
Typical Quiescent Current (mA) 0.002

Więcej informacji

Do pobrania	Download
Main description	LDO Regulator Pos 2.05V 0.23A 4-Pin(3+Tab) SOT-89
