MCP1701AT-4602I/MB

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1701AT-4602I_MB_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1701AT-4602I/MB

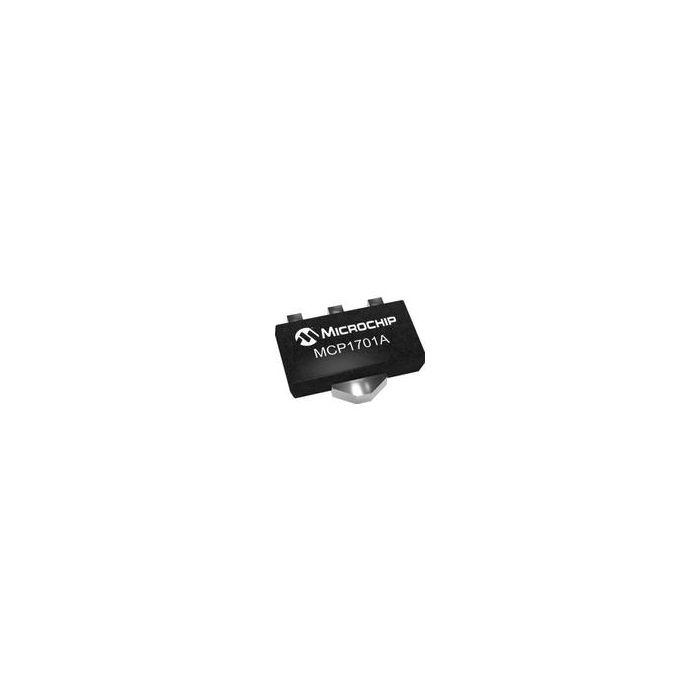

LDO Regulator Pos 4.6V 4-Pin(3+Tab) SOT-89 T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 11
  • Inventory 6
  • PCNs 46
  • MaskPart MCP1701AT4602IMB%
  • IntroductionDate Mar 02, 2006

Parametry

  • Accuracy (%) ±2
  • Junction to Ambient N/A
  • Junction to Case N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Dropout Voltage @ Current (V) N/A
  • Maximum Input Voltage (V) 10
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) N/A
  • Maximum Power Dissipation (mW) N/A
  • Maximum Quiescent Current (mA) 0.0045
  • Maximum Storage Temperature (°C) 125
  • Minimum Input Voltage (V) N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -40
  • Noise Spectral Density (uV/rtHz) N/A
  • Number of Outputs 1
  • Output Capacitor Type N/A
  • Output Type Fixed
  • Output Voltage (V) 4.6
  • Output Voltage Range (V) 1.8 to 10
  • Pass Element Type PMOS
  • Polarity Positive
  • Reference Voltage (V) N/A
  • Special Features Short Circuit Protection
  • Supplier Temperature Grade N/A
  • Type LDO
  • Typical Bias Voltage (VDC) N/A
  • Typical Dropout Voltage @ Current (V) N/A
  • Typical Ground Current @ Full Load (mA) N/A
  • Typical Output Capacitance (uF) 1
  • Typical Output Noise Voltage (uVrms) N/A
  • Typical PSRR (dB) N/A
  • Typical Power Dissipation (mW) N/A
  • Typical Quiescent Current (mA) 0.002

Więcej informacji

Do pobrania Download
Main description LDO Regulator Pos 4.6V 4-Pin(3+Tab) SOT-89 T/R
