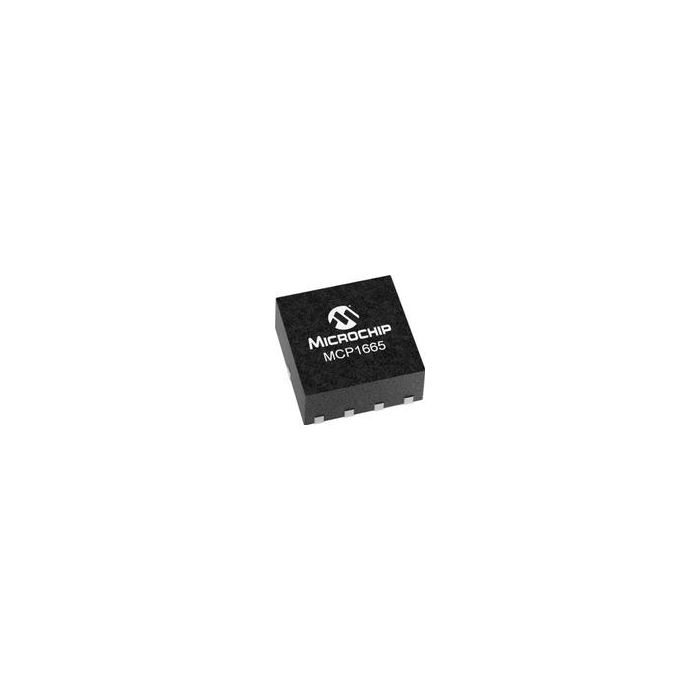

MCP1665T-E/MRA

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1665T-E_MRA_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1665T-E/MRA

Conv DC-DC 2.7V to 5V Step Up Single-Out 32V 1A 10-Pin VQFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 7
  • PCNs 45
  • MaskPart MCP1665TEMRA%

Parametry

  • Efficiency (%) 92
  • Isolation N/A
  • Line Regulation 0.1%/V
  • Load Regulation 0.2%(Typ)
  • Maximum High Level Output Voltage (V) N/A
  • Maximum Input Voltage (V) 5
  • Maximum Low Level Output Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 1(Typ)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.7 to 5
  • Output Type Adjustable
  • Output Voltage (V) 32(Max)
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 575
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Up
  • Typical Input Voltage (V) N/A
  • Typical Output Resistance (Ohm) N/A
  • Typical Quiescent Current (uA) N/A
  • Typical Switch Current (A) 3.6

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.7V to 5V Step Up Single-Out 32V 1A 10-Pin VQFN EP T/R
