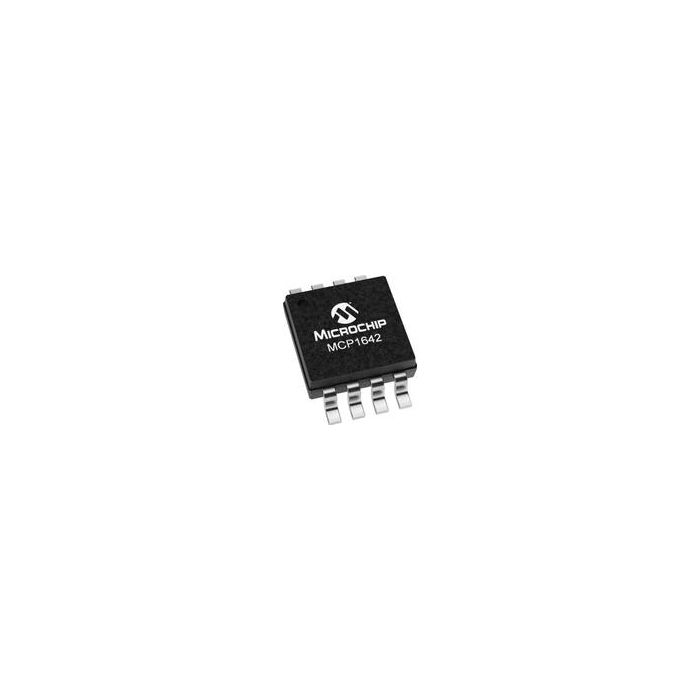

MCP1642D-18I/MS
| Do pobrania | Download |
|---|---|
| Main description | Conv DC-DC 0.35V to 5.5V Synchronous Step Up Single-Out 1.8V 0.175A 8-Pin MSOP Tube |
Conv DC-DC 0.35V to 5.5V Synchronous Step Up Single-Out 1.8V 0.175A 8-Pin MSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 3
- PCNs 52
- GIDEP-Alerts 7
- MaskPart MCP1642D18IMS%
Parametry
- Efficiency (%) 96(Typ)
- Isolation N/A
- Line Regulation 0.5%/V
- Load Regulation 1.5%
- Maximum High Level Output Voltage (V) N/A
- Maximum Input Voltage (V) 5.5
- Maximum Low Level Output Voltage (V) N/A
- Maximum Output Current (A) 0.175(Typ)
- Maximum Output Power (W) N/A
- Maximum Storage Temperature (°C) 150
- Minimum Input Voltage (V) 0.35(Typ)
- Minimum Isolation Voltage N/A
- Minimum Storage Temperature (°C) -65
- Number of Outputs 1
- Output Type Fixed
- Output Voltage (V) 1.8
- Process Technology N/A
- Supplier Temperature Grade Industrial
- Switching Frequency (kHz) 1000(Typ)
- Switching Regulator Yes
- Technology N/A
- Type Synchronous Step Up
- Typical Input Voltage (V) N/A
- Typical Output Resistance (Ohm) N/A
- Typical Quiescent Current (uA) 400
- Typical Switch Current (A) 1.8
