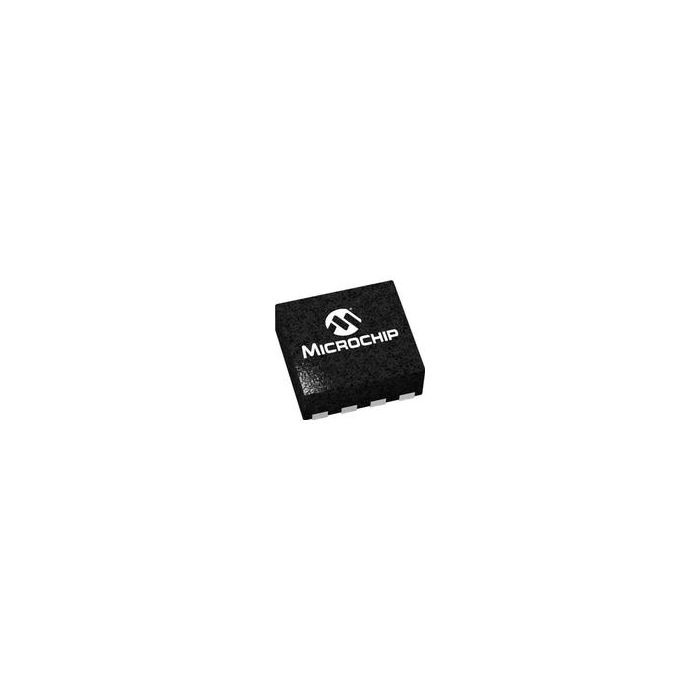

MCP16251T-I/MNY

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP16251T-I_MNY_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP16251T-I/MNY

Conv DC-DC 0.82V to 5.5V Synchronous Step Up Single-Out 1.8V to 5.5V 0.225A 8-Pin TDFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 85
  • Inventory 5
  • PCNs 52
  • GIDEP-Alerts 4
  • MaskPart MCP16251TIMNY%

Parametry

  • Efficiency (%) 96
  • Isolation Isolated
  • Line Regulation 0.4%/V
  • Load Regulation 1.5%
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.225(Typ)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 0.82
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Adjustable
  • Output Voltage (V) 1.8 to 5.5
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 425 to 575
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 4
  • Typical Switch Current (A) 0.65

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 0.82V to 5.5V Synchronous Step Up Single-Out 1.8V to 5.5V 0.225A 8-Pin TDFN EP T/R
