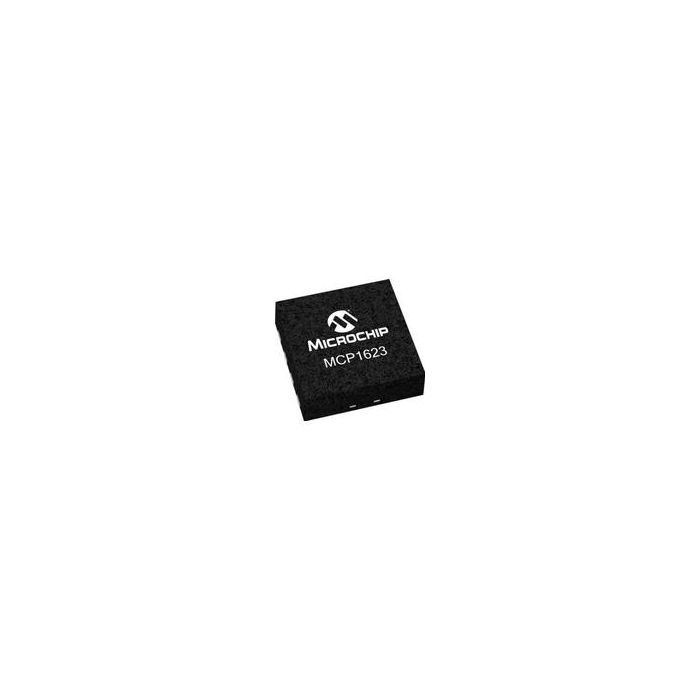

MCP1623T-I/MC

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1623T-I_MC_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1623T-I/MC

Conv DC-DC 0.35V to 5.5V Synchronous Step Up Single-Out 2V to 5.5V 0.05A 8-Pin DFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • Inventory 3
  • PCNs 53
  • GIDEP-Alerts 5
  • MaskPart MCP1623%IMC
  • IntroductionDate May 04, 2010

Parametry

  • Efficiency (%) 96(Typ)
  • Isolation N/A
  • Line Regulation 0.01%/V(Typ)
  • Load Regulation 0.01%/V(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.05(Min)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 0.35(Typ)
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 0.35 to 5.5
  • Output Type Adjustable
  • Output Voltage (V) 2 to 5.5
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 370 to 630
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 220

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 0.35V to 5.5V Synchronous Step Up Single-Out 2V to 5.5V 0.05A 8-Pin DFN EP T/R
