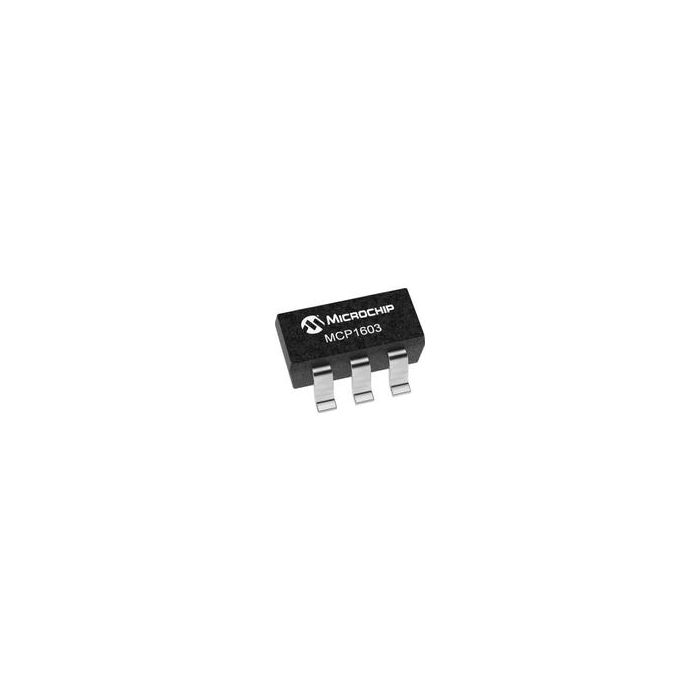

MCP1603-150I/OS

ProducentMicrochip TechnologyAutomotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1603-150I_OS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1603-150I/OS

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.5V 0.5A Automotive 5-Pin TSOT Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • Automotive Yes

Informacje dodatkowe

  • Crosses 239
  • PCNs 49
  • MaskPart MCP1603%150IOS
  • IntroductionDate May 15, 2007

Parametry

  • Efficiency (%) 90(Typ)
  • Isolation N/A
  • Line Regulation 0.3%/V(Typ)
  • Load Regulation 0.35%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.5(Min)
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 2.7
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 2.7 to 5.5
  • Output Type Fixed
  • Output Voltage (V) 1.5
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 2800
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 45

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.5V 0.5A Automotive 5-Pin TSOT Tube
