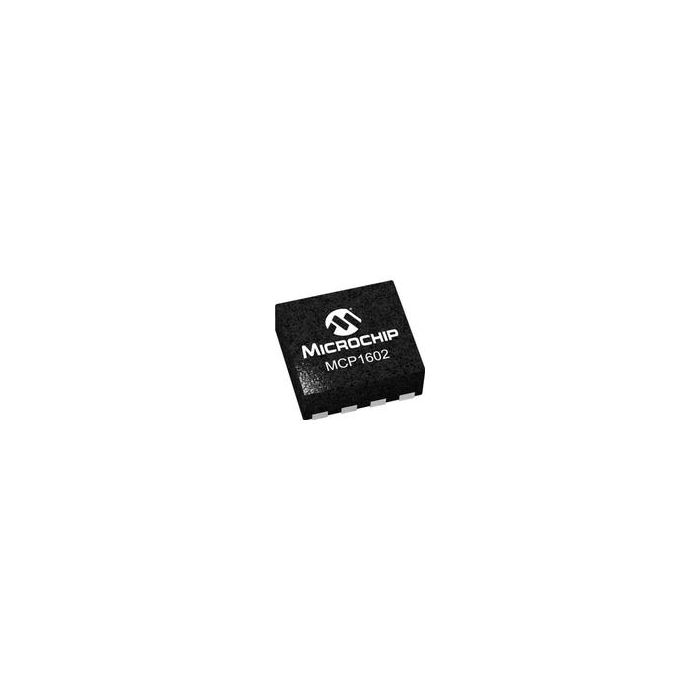

MCP1602T-330I/MF

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1602T-330I_MF_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1602T-330I/MF

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 3.3V 0.5A Automotive 8-Pin DFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 395
  • Inventory 1*
  • PCNs 52
  • MaskPart MCP1602%330IMF
  • IntroductionDate Oct 23, 2007

Parametry

  • Efficiency (%) 90(Typ)
  • Line Regulation 0.3%/V(Typ)
  • Load Regulation 0.4%(Typ)
  • Maximum Input Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 0.5(Min)
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 2.7
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) N/A
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Supplier Temperature Grade Industrial
  • Switching Frequency (kHz) 2000(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Synchronous Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 45

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 3.3V 0.5A Automotive 8-Pin DFN EP T/R
