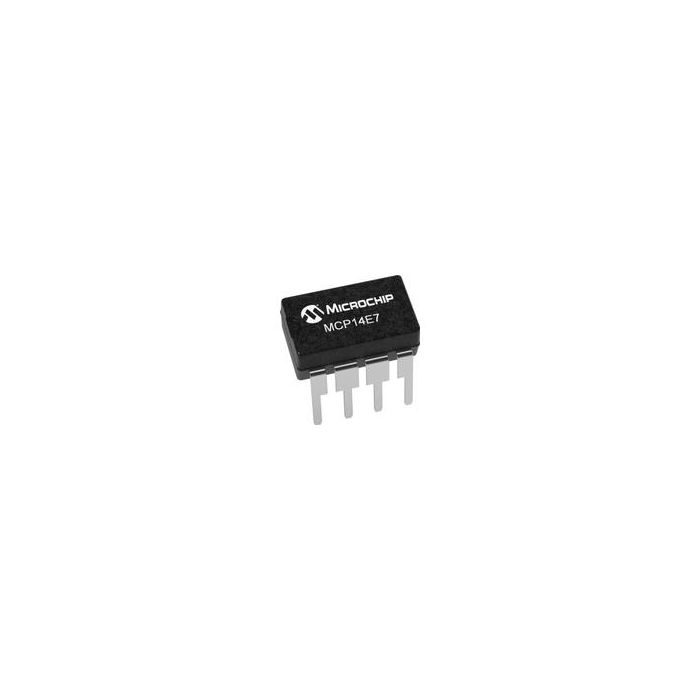

MCP14E7-E/P
| Do pobrania | Download |
|---|---|
| Main description | Driver 2A 2-OUT Low Side Non-Inv Automotive 8-Pin PDIP Tube |
Driver 2A 2-OUT Low Side Non-Inv Automotive 8-Pin PDIP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 44
- Inventory 5
- PCNs 49
- GIDEP-Alerts 2
- MaskPart MCP14E7EP%
- IntroductionDate Mar 30, 2011
Parametry
- Absolute Propagation Delay Time (ns) 85
- Bridge Type N/A
- Driver Configuration Non-Inverting
- Driver Type Low Side
- High and Low Sides Dependency N/R
- Input Logic Compatibility CMOS|TTL|3V to 18V
- Maximum Fall Time (ns) 35
- Maximum Power Dissipation (mW) 1120
- Maximum Propagation Delay Time (ns) 65
- Maximum Rise Time (ns) 30
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 1.8
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Minimum Storage Temperature (°C) -65
- Number of Drivers 2
- Number of Outputs 2
- Output Resistance (Ohm) 5|5
- Peak Output Current (A) 2(Typ)
- Reference Voltage (V) N/A
- Special Features N/A
- Supplier Temperature Grade Extended
- Type IGBT|MOSFET
- Typical Input High Threshold Voltage (V) 1.5
- Typical Input Low Threshold Voltage (V) 1.3
