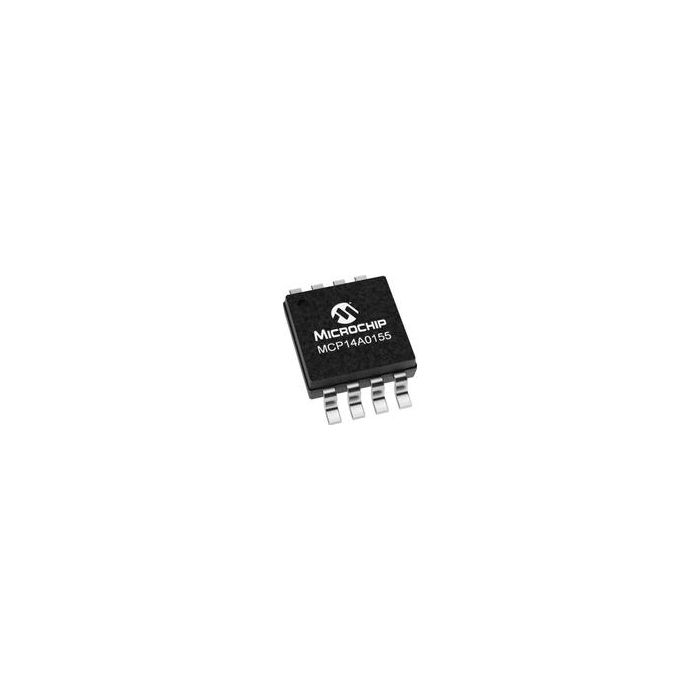

MCP14A0155-E/MS
Do pobrania | Download |
---|---|
Main description | Driver 1.5A 1-OUT Inv/Non-Inv 8-Pin MSOP Tube |
Driver 1.5A 1-OUT Inv/Non-Inv 8-Pin MSOP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 22
- Inventory 5
- PCNs 50
- GIDEP-Alerts 4
- MaskPart MCP14A0155EMS%
Parametry
- Absolute Propagation Delay Time (ns) 35
- Bridge Type N/A
- Driver Configuration Inverting|Non-Inverting
- Driver Type N/A
- High and Low Sides Dependency N/R
- Input Logic Compatibility CMOS
- Latch-Up Proof Yes
- Maximum Fall Time (ns) 20
- Maximum Power Dissipation (mW) 630
- Maximum Propagation Delay Time (ns) 35
- Maximum Rise Time (ns) 21
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 1.2
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Minimum Storage Temperature (°C) -65
- Number of Drivers 1
- Number of Outputs 1
- Output Resistance (Ohm) N/A
- Peak Output Current (A) 1.5(Typ)
- Reference Voltage (V) N/A
- Special Features N/A
- Supplier Temperature Grade N/A
- Type IGBT|MOSFET
- Typical Input High Threshold Voltage (V) 1.6
- Typical Input Low Threshold Voltage (V) 1.2
