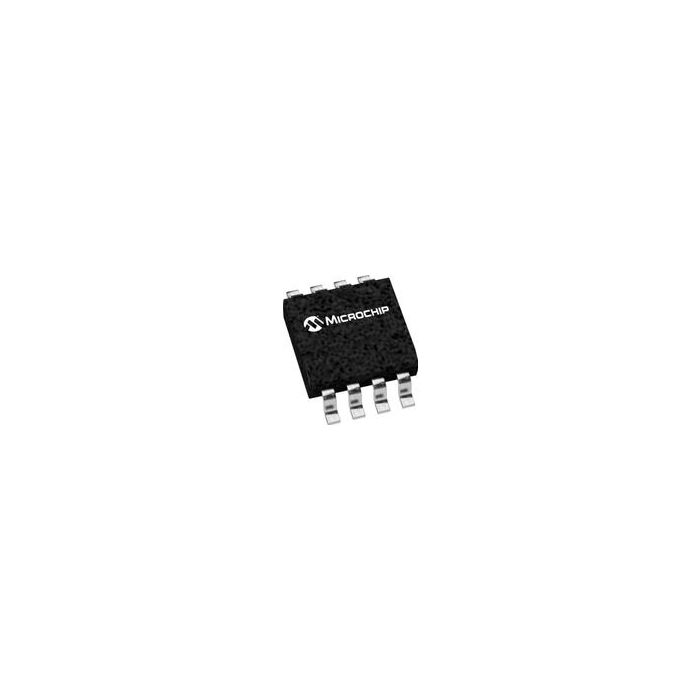

MCP1407T-E/SN
| Do pobrania | Download |
|---|---|
| Main description | Driver 6A 1-OUT Low Side Non-Inv Automotive 8-Pin SOIC N T/R |
Driver 6A 1-OUT Low Side Non-Inv Automotive 8-Pin SOIC N T/R
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 31
- Inventory 6
- PCNs 61
- GIDEP-Alerts 11
- MaskPart MCP1407%ESN
- IntroductionDate Dec 12, 2006
Parametry
- Absolute Propagation Delay Time (ns) 65
- Bridge Type N/A
- Driver Configuration Non-Inverting
- Driver Type Low Side
- High and Low Sides Dependency N/R
- Input Logic Compatibility CMOS|TTL
- Maximum Fall Time (ns) 30
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time (ns) 55
- Maximum Rise Time (ns) 30
- Maximum Supply Current (mA) 0.25
- Maximum Turn-Off Delay Time (ns) N/A
- Maximum Turn-On Delay Time (ns) N/A
- Number of Drivers 1
- Number of Outputs 1
- Output Resistance (Ohm) 1.5|2.1
- Peak Output Current (A) 6(Typ)
- Reference Voltage (V) N/A
- Special Features N/A
- Supplier Temperature Grade Extended
- Type IGBT|MOSFET
- Typical Input High Threshold Voltage (V) 1.8
- Typical Input Low Threshold Voltage (V) 1.3
