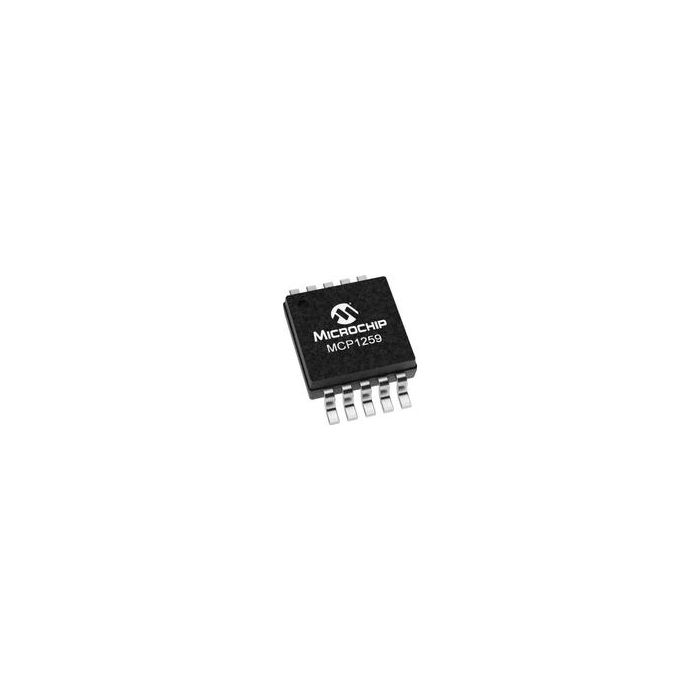

MCP1259T-EUN

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MCP1259T-EUN_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / MCP1259T-EUN

Conv DC-DC 1.8V to 3.6V Step Up Single-Out 3.3V 0.1A Automotive 10-Pin MSOP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 34
  • Inventory 4
  • PCNs 48
  • MaskPart MCP1259%EUN
  • IntroductionDate Mar 08, 2006

Parametry

  • Efficiency (%) 84.5(Typ)
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Current (A) 0.1(Min)
  • Maximum Output Power (W) N/A
  • Minimum Input Voltage (V) 1.8
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Number of Outputs 1
  • Operating Supply Voltage (V) 1.8 to 3.6
  • Output Type Fixed
  • Output Voltage (V) 3.3
  • Supplier Temperature Grade Extended
  • Switching Frequency (kHz) 650(Typ)
  • Switching Regulator Yes
  • Technology N/A
  • Type Step Up
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) 10

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 1.8V to 3.6V Step Up Single-Out 3.3V 0.1A Automotive 10-Pin MSOP T/R
