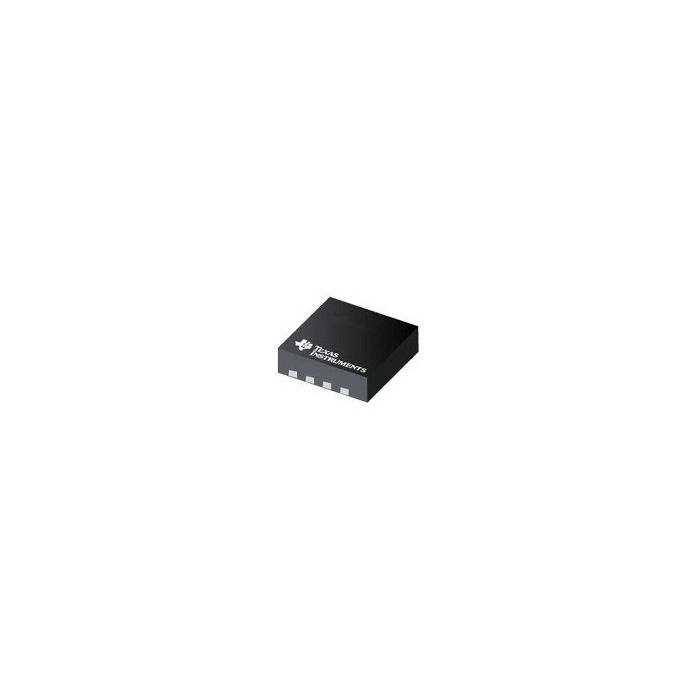

MC33063ADRJR

ProducentTexas InstrumentsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MC33063ADRJR_TEXAS_INSTRUMENTS
0,00 zł

Zapytaj o ten produkt

Opis / MC33063ADRJR

Conv DC-DC 3V to 40V Inv/Step Up/Step Down Single-Out 1.25V to 40V 1.5A 8-Pin WSON EP T/R

Informacje podstawowe

  • ProducentTexas Instruments
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 7
  • PCNs 44
  • MaskPart MC33063ADRJ%
  • IntroductionDate Mar 01, 2006
  • AliasParts MC33063ADRJRG4

Parametry

  • Efficiency (%) N/A
  • Isolation N/A
  • Line Regulation N/A
  • Load Regulation N/A
  • Maximum Input Voltage (V) 40
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (A) 1.5
  • Maximum Output Power (W) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Input Voltage (V) 3
  • Minimum Isolation Voltage N/A
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Outputs 1
  • Operating Supply Voltage (V) 3 to 40
  • Output Type Adjustable
  • Output Voltage (V) 1.25 to 40
  • Supplier Temperature Grade N/A
  • Switching Frequency (kHz) 24 to 42
  • Switching Regulator Yes
  • Technology N/A
  • Type Inverting|Step Up|Step Down
  • Typical Input Voltage (V) N/A
  • Typical Quiescent Current (uA) N/A

Więcej informacji

Do pobrania Download
Main description Conv DC-DC 3V to 40V Inv/Step Up/Step Down Single-Out 1.25V to 40V 1.5A 8-Pin WSON EP T/R
