MC13226V

ProducentNXP SemiconductorsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MC13226V_NXP_SEMICONDUCTORS
0,00 zł

Zapytaj o ten produkt

Opis / MC13226V

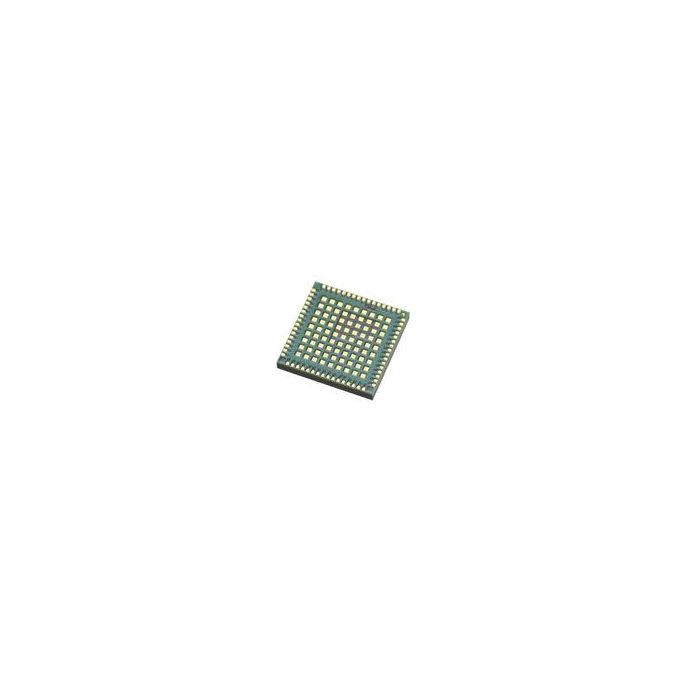

802.15.4/ZigBee SOC 2480MHz 250Kbps 145-Pin LGA Tray

Informacje podstawowe

  • ProducentNXP Semiconductors
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 8
  • Inventory 1
  • PCNs 16
  • GIDEP-Alerts 1
  • FoundINBOMs 1
  • MaskPart MC13226V%
  • IntroductionDate Sep 23, 2010

Parametry

  • Antenna Mounting N/A
  • Application Residential and Commercial Automation|Lighting Control|Security|Access Control|Heating, Ventilation, Air-Conditioning (HVAC)|Automated Meter Reading (Amr)|Industrial Control
  • External Antenna Connector Type N/A
  • Flash Size (KB) 128
  • ISM Band 2.4GHz
  • Indoor Range N/A
  • Interface I2C/SPI/UART
  • Internal Antenna Type N/A
  • Maximum Current Consumption (RX) (mA) 22(Typ)
  • Maximum Current Consumption (TX) (mA) 29(Typ)
  • Maximum Data Rate (Kbps) 250(Typ)
  • Maximum Operating Frequency (MHz) 2480
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 105
  • Maximum Output Power 4dBm(Typ)
  • Maximum Storage Temperature (°C) 125
  • Minimum Operating Frequency (MHz) 2405
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -55
  • Modulation Technique N/A
  • Module/IC Classification IC
  • Number of Channels 16
  • Outdoor Range N/A
  • Process Technology N/A
  • Processing Unit Type Microprocessor
  • Protocol Stack 802.15.4/ZigBee
  • RAM Size (KB) 96
  • Solutions AMR/ISM
  • Special Features N/A
  • Supplier Temperature Grade N/A
  • Tradename N/A
  • Typical Operating Supply Voltage (V) 2.7
  • Typical Sensitivity -96dBm

Więcej informacji

Do pobrania Download
Main description 802.15.4/ZigBee SOC 2480MHz 250Kbps 145-Pin LGA Tray
