MAX98400BETG+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX98400BETG+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX98400BETG+

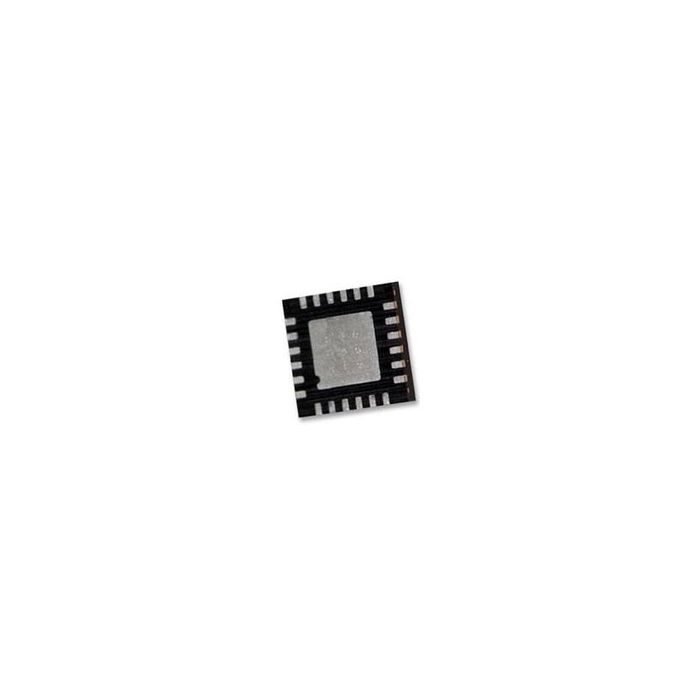

Audio Amp Speaker 2-CH Stereo 15W Class-D 24-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 2
  • PCNs 11
  • GIDEP-Alerts 1
  • MaskPart MAX98400BETG+%
  • IntroductionDate Jun 01, 2010

Parametry

  • Amplifier Type Class-D
  • Function Speaker
  • Input Signal Type Differential
  • Maximum Dual Supply Voltage (V) 5.5|28
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) N/A
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) 8@18V
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) 2857.1
  • Maximum Quiescent Current (mA) 23@18V
  • Maximum Single Supply Voltage (V) 28
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) 60(Typ)
  • Minimum Dual Supply Voltage (V) 4.75|8
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 8
  • Minimum Storage Temperature (°C) -65
  • Output Signal Type Differential
  • Output Type 2-Channel Stereo
  • Power Supply Type Single|Dual
  • Rail to Rail N/A
  • Supplier Temperature Grade Extended
  • Total Harmonic Distortion Noise 0.03%@8Ohm
  • Typical Dual Supply Voltage (V) 5|9|12|15|18|24
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Power x Channels @ Load (W) 15x2@4Ohm
  • Typical PSRR (dB) 67
  • Typical Quiescent Current (mA) 16@18V
  • Typical Single Supply Voltage (V) 9|12|15|18|24
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) N/A

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 2-CH Stereo 15W Class-D 24-Pin TQFN EP
