MAX98304EWL+
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono 3.2W Class-D 9-Pin WLP |

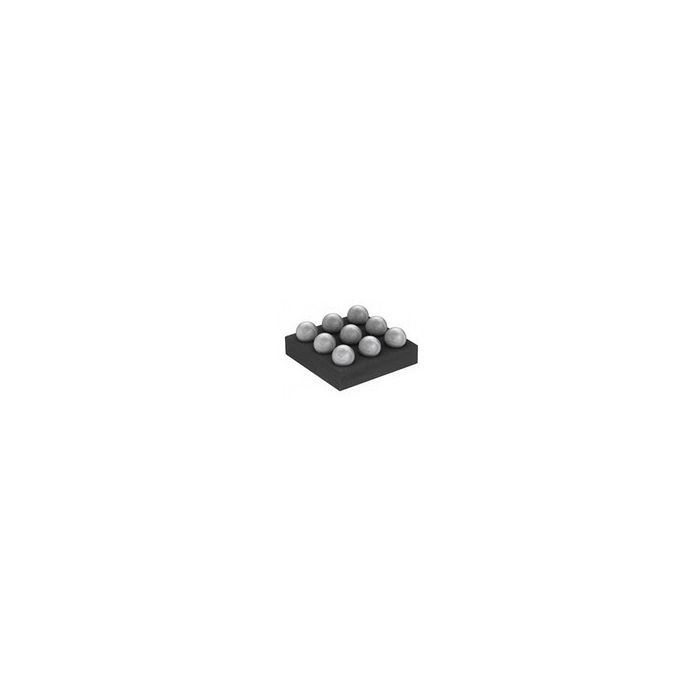

Audio Amp Speaker 1-CH Mono 3.2W Class-D 9-Pin WLP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 233
- PCNs 7
- MaskPart MAX98304EWL+%
- IntroductionDate Sep 01, 2010
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) 750
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 848
- Maximum Quiescent Current (mA) 1.8@5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) 80(Typ)
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.5
- Minimum Storage Temperature (°C) -65
- Output Signal Type Differential
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.03%@4Ohm@1W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 3.2x1@4Ohm
- Typical PSRR (dB) 90
- Typical Quiescent Current (mA) 1.2@5V
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 12
