MAX9737ETG+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX9737ETG+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX9737ETG+T

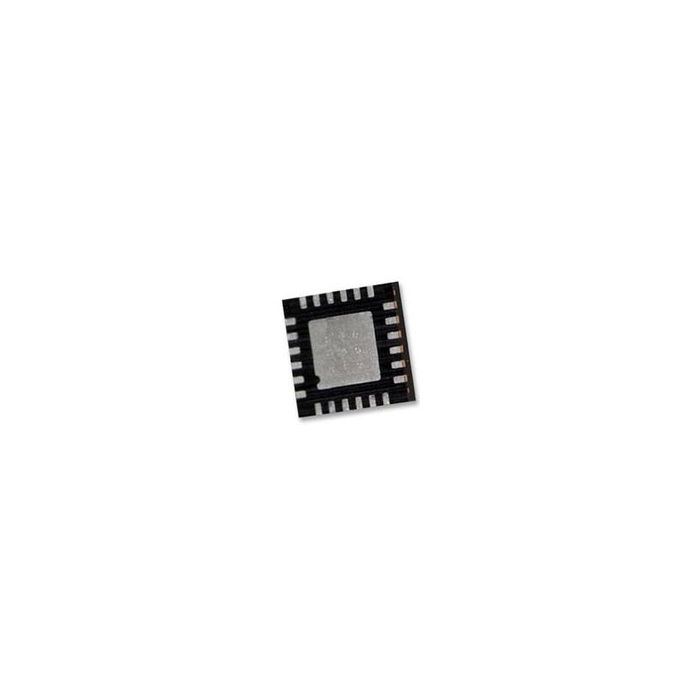

Audio Amp Speaker 1-CH Mono 13W Class-D 24-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 11
  • Inventory 3
  • PCNs 10
  • GIDEP-Alerts 1
  • MaskPart MAX9737ETG+%
  • IntroductionDate Oct 01, 2008

Parametry

  • Amplifier Type Class-D
  • Function Speaker
  • Input Signal Type Single
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) 2(Typ)
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) 4600(Typ)
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) 2222.2
  • Maximum Quiescent Current (mA) 20@12V
  • Maximum Single Supply Voltage (V) 28
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 8
  • Output Signal Type Differential
  • Output Type 1-Channel Mono
  • Power Supply Type Single
  • Rail to Rail N/A
  • Supplier Temperature Grade Extended
  • Total Harmonic Distortion Noise 0.06%@8Ohm@2W
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) 3.5
  • Typical Output Power x Channels @ Load (W) 13x1@4Ohm
  • Typical PSRR (dB) 80
  • Typical Quiescent Current (mA) 15@12V
  • Typical Single Supply Voltage (V) 9|12|15|18|24
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) 88

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 1-CH Mono 13W Class-D 24-Pin TQFN EP T/R
