MAX9736DETJ+
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono/2-CH Stereo 17W Class-D 32-Pin TQFN EP |

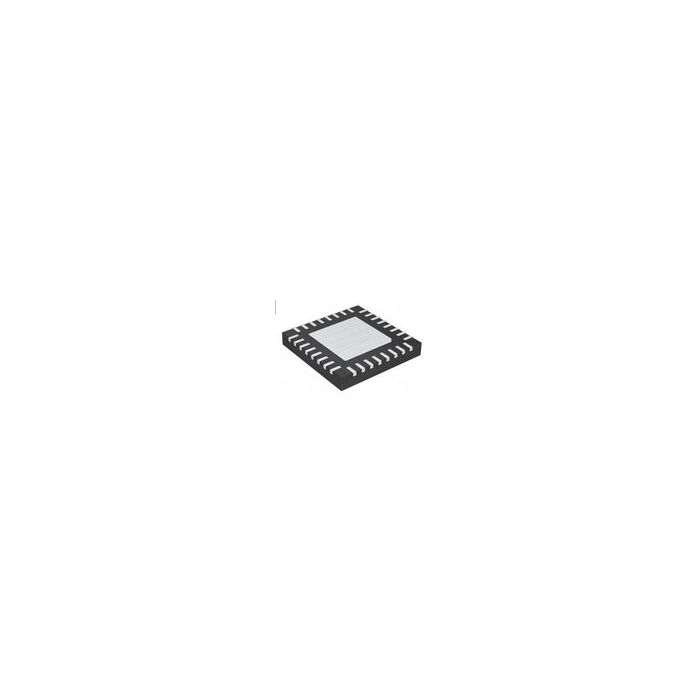

Audio Amp Speaker 1-CH Mono/2-CH Stereo 17W Class-D 32-Pin TQFN EP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 23
- Inventory 2
- PCNs 11
- GIDEP-Alerts 1
- MaskPart MAX9736DETJ+%
- IntroductionDate Jan 01, 2008
Parametry
- Amplifier Type Class-D
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) 5.5|28
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) 1(Typ)
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 2960
- Maximum Quiescent Current (mA) 45@20V/20@5V
- Maximum Single Supply Voltage (V) N/R
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) 4.5|8
- Minimum Single Supply Voltage (V) N/R
- Minimum Storage Temperature (°C) -65
- Output Signal Type Differential
- Output Type 1-Channel Mono|2-Channel Stereo
- Power Supply Type Dual
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.04%@8Ohm@2W
- Typical Dual Supply Voltage (V) 5|9|12|15|18|24
- Typical Gain Bandwidth Product (MHz) 3.5
- Typical Output Power x Channels @ Load (W) 17x1@4Ohm|8.5x2@8Ohm
- Typical PSRR (dB) 80
- Typical Quiescent Current (mA) 30@20V/14@5V
- Typical Single Supply Voltage (V) N/R
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) 88
