MAX9736AETJ/V+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX9736AETJ_V+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX9736AETJ/V+

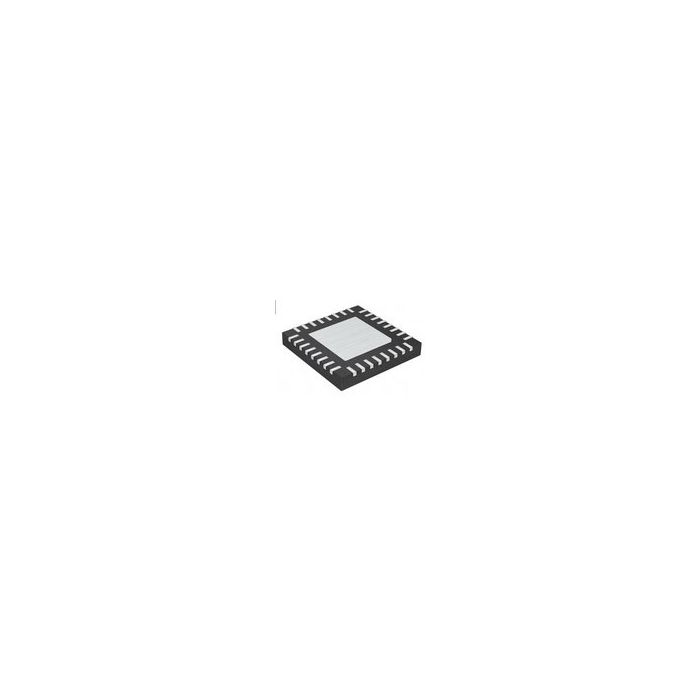

Audio Amp Speaker 1-CH Mono/2-CH Stereo 35W Class-D Automotive 32-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 36
  • Inventory 1
  • PCNs 8
  • MaskPart MAX9736AETJV+%
  • IntroductionDate Jan 01, 2008

Parametry

  • Amplifier Type Class-D
  • Function Speaker
  • Input Signal Type Single
  • Maximum Dual Supply Voltage (V) 5.5|28
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) 1(Typ)
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) N/A
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) 2960
  • Maximum Quiescent Current (mA) 45@20V/20@5V
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) 4.5|8
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) N/R
  • Minimum Storage Temperature (°C) -65
  • Output Signal Type Differential
  • Output Type 1-Channel Mono|2-Channel Stereo
  • Power Supply Type Dual
  • Rail to Rail N/A
  • Supplier Temperature Grade Extended
  • Total Harmonic Distortion Noise 0.04%@8Ohm@4W
  • Typical Dual Supply Voltage (V) 5|9|12|15|18|24
  • Typical Gain Bandwidth Product (MHz) 3.5
  • Typical Output Power x Channels @ Load (W) 35x1@4Ohm|17.5x2@8Ohm
  • Typical PSRR (dB) 80
  • Typical Quiescent Current (mA) 30@20V/14@5V
  • Typical Single Supply Voltage (V) N/R
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) 88

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 1-CH Mono/2-CH Stereo 35W Class-D Automotive 32-Pin TQFN EP
