MAX9718CEBL+T
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono 1.4W Class-AB 9-Pin UCSP T/R |

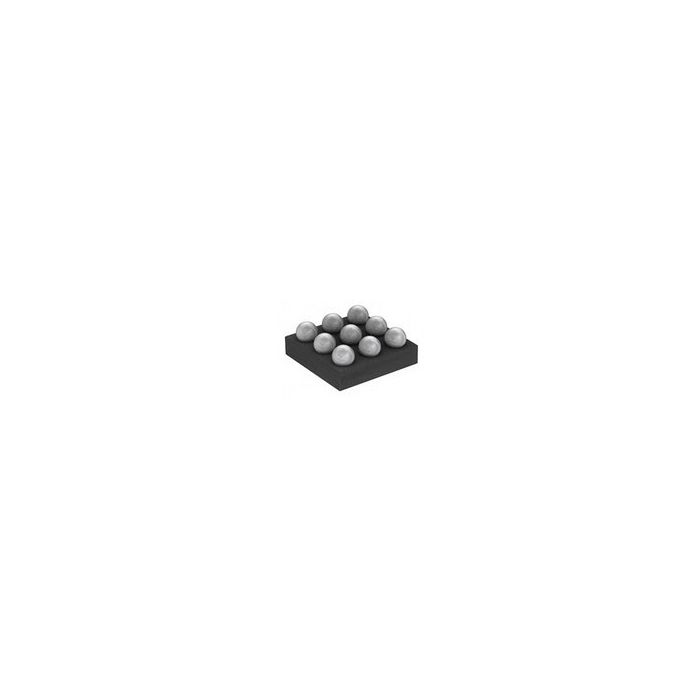

Audio Amp Speaker 1-CH Mono 1.4W Class-AB 9-Pin UCSP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 297
- PCNs 8
- MaskPart MAX9718CEBL+%
- IntroductionDate Oct 01, 2003
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Differential
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 1067
- Maximum Quiescent Current (mA) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 7.5@5V@-40C to 85C
- Minimum CMRR (dB) 50
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Output Signal Type Differential
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.002%@8Ohm@750mW
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 1.4x1@4Ohm
- Typical PSRR (dB) 93
- Typical Quiescent Current (mA) N/A
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 5@5V
- Typical Voltage Gain (dB) N/A
