MAX9715EUE+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX9715EUE+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX9715EUE+T

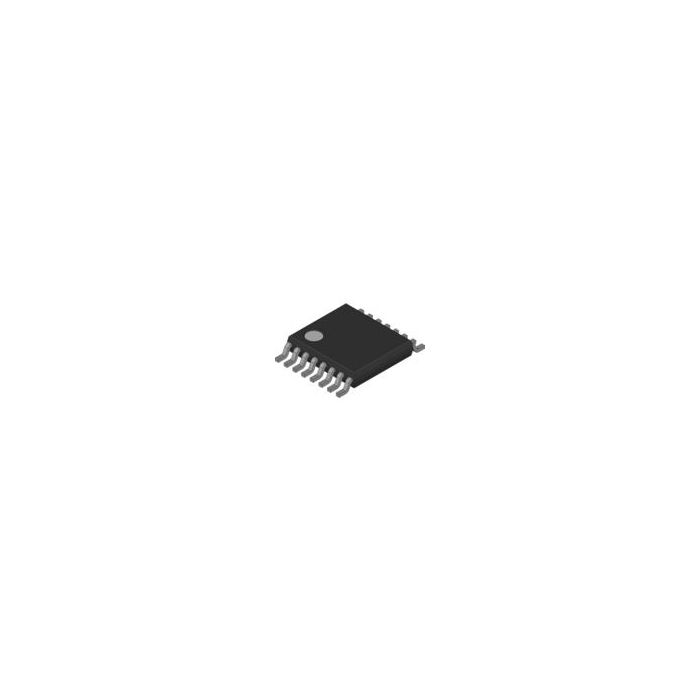

Audio Amp Speaker 2-CH Stereo 2.8W Class-D 16-Pin TSSOP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 24
  • PCNs 7
  • MaskPart MAX9715EUE+%
  • IntroductionDate Aug 01, 2005

Parametry

  • Amplifier Type Class-D
  • Function Speaker
  • Input Signal Type Single
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Input Bias Current (uA) N/A
  • Maximum Input Offset Voltage (mV) N/A
  • Maximum Load Resistance (Ohm) 8
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Current (mA) 1700
  • Maximum Output Power x Channels @ Load (W) N/A
  • Maximum Power Dissipation (mW) 754.7
  • Maximum Quiescent Current (mA) 16@5V@-40C to 85C
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) N/A
  • Minimum CMRR (dB) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.5
  • Output Signal Type Differential
  • Output Type 2-Channel Stereo
  • Power Supply Type Single
  • Rail to Rail N/A
  • Supplier Temperature Grade Extended
  • Total Harmonic Distortion Noise 0.07%@4Ohm@2W|0.06%@8Ohm@1.2W
  • Typical Dual Supply Voltage (V) N/R
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Power x Channels @ Load (W) 2.8x2@4Ohm
  • Typical PSRR (dB) 75
  • Typical Quiescent Current (mA) 12.8@5V
  • Typical Single Supply Voltage (V) 5
  • Typical Supply Current (mA) N/A
  • Typical Voltage Gain (dB) 10.5

Więcej informacji

Do pobrania Download
Main description Audio Amp Speaker 2-CH Stereo 2.8W Class-D 16-Pin TSSOP T/R
