MAX9711ETC+T
| Do pobrania | Download |
|---|---|
| Main description | Audio Amp Speaker 1-CH Mono 3W Class-AB 12-Pin TQFN EP T/R |

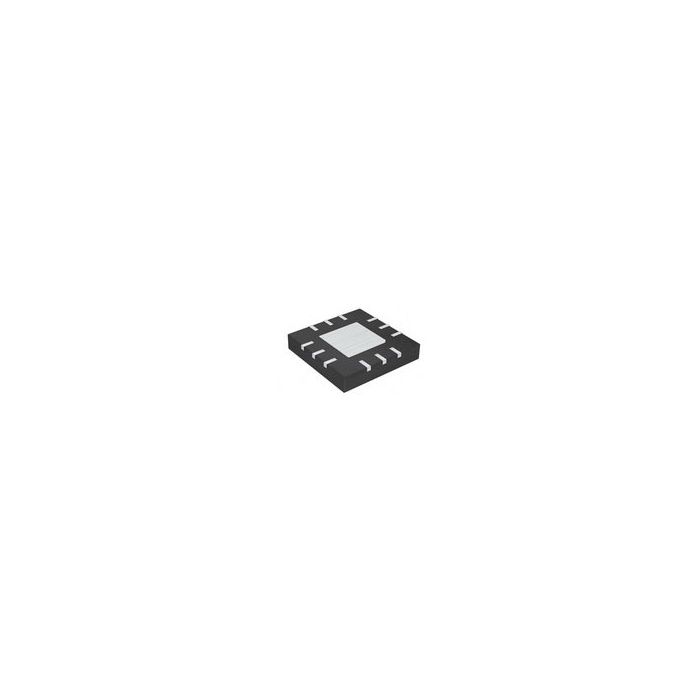

Audio Amp Speaker 1-CH Mono 3W Class-AB 12-Pin TQFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 451
- Inventory 1
- PCNs 10
- GIDEP-Alerts 1
- MaskPart MAX9711ETC+%
- IntroductionDate Apr 01, 2003
Parametry
- Amplifier Type Class-AB
- Function Speaker
- Input Signal Type Single
- Maximum Dual Supply Voltage (V) N/R
- Maximum Input Bias Current (uA) N/A
- Maximum Input Offset Voltage (mV) N/A
- Maximum Load Resistance (Ohm) 8
- Maximum Output Current (mA) N/A
- Maximum Output Power x Channels @ Load (W) N/A
- Maximum Power Dissipation (mW) 1349
- Maximum Quiescent Current (mA) 17@5V@-40C to 85C
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Minimum CMRR (dB) N/A
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.5
- Output Signal Type Differential
- Output Type 1-Channel Mono
- Power Supply Type Single
- Rail to Rail N/A
- Supplier Temperature Grade Extended
- Total Harmonic Distortion Noise 0.01%@4Ohm@2W|0.005%@8Ohm@1.2W
- Typical Dual Supply Voltage (V) N/R
- Typical Gain Bandwidth Product (MHz) N/A
- Typical Output Power x Channels @ Load (W) 3x1@3Ohm
- Typical PSRR (dB) 100
- Typical Quiescent Current (mA) 7@5V
- Typical Single Supply Voltage (V) 5
- Typical Supply Current (mA) N/A
- Typical Voltage Gain (dB) N/A
