MAX813LESA+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX813LESA+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX813LESA+

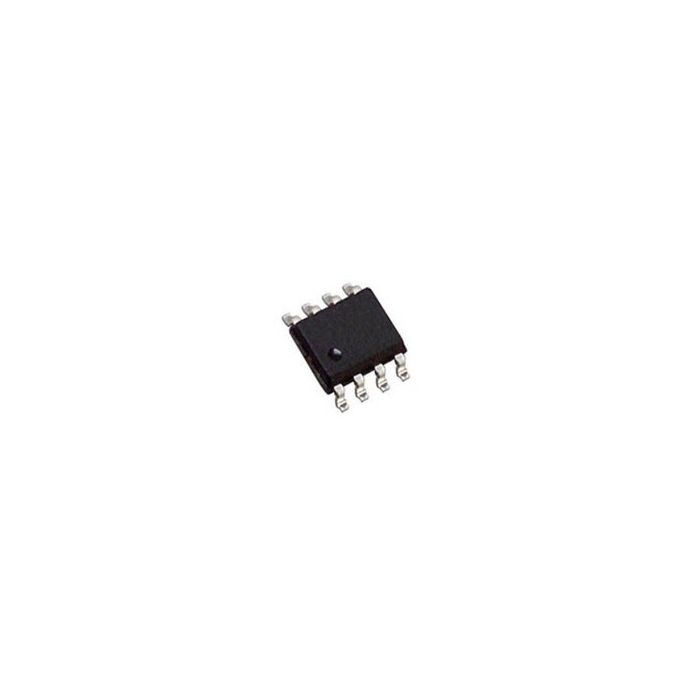

Processor Supervisor 4.65V 1 Active High/Push-Pull 8-Pin SOIC N

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 21
  • Inventory 3
  • PCNs 8
  • MaskPart MAX813LESA+%
  • IntroductionDate Feb 01, 1992

Parametry

  • Battery Backup Switching No
  • Chip Enable Signals No
  • Manual Reset Yes
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 471
  • Maximum Reset Active Time (ms) 280
  • Maximum Reset Threshold Voltage (V) 4.75
  • Maximum Supply Current (uA) 500
  • Minimum Operating Supply Voltage (V) 1.2
  • Minimum Operating Temperature (°C) -40
  • Minimum Reset Threshold Voltage (V) 4.5
  • Monitored Voltage (V) 4.65
  • Number of Supervisors 1
  • Output Driver Active High/Push-Pull
  • Power Fail Detection Yes
  • Supplier Temperature Grade Extended
  • Typical Operating Supply Voltage (V) N/A
  • Typical Reset Threshold Voltage (V) 4.65
  • Watchdog Timer Yes

Więcej informacji

Do pobrania Download
Main description Processor Supervisor 4.65V 1 Active High/Push-Pull 8-Pin SOIC N
