MAX71315ECQ+
| Do pobrania | Download |
|---|---|
| Main description | SOC MAX71315 MAXQ30 100-Pin LQFP Bulk |

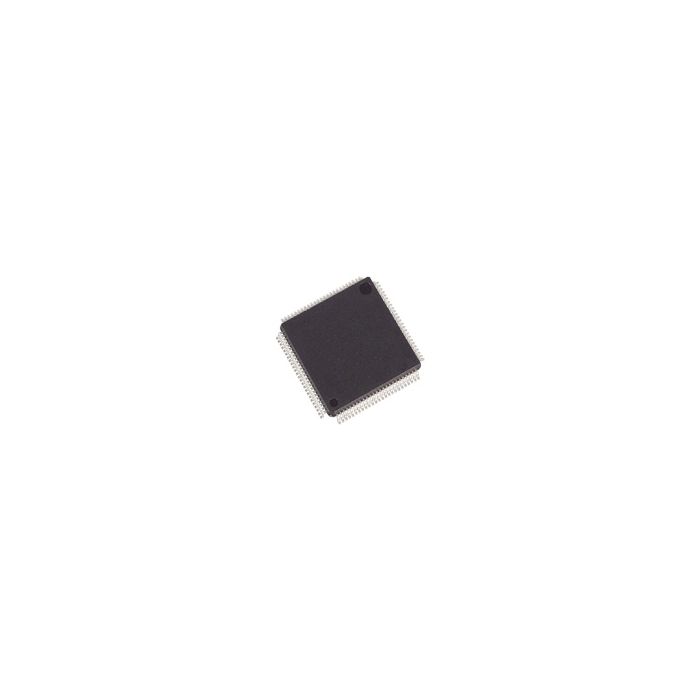

SOC MAX71315 MAXQ30 100-Pin LQFP Bulk
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- PCNs 9
- GIDEP-Alerts 2
- MaskPart MAX71315ECQ+%
- IntroductionDate Dec 18, 2013
Parametry
- ADC Channels N/A
- ADC Resolution (bit) N/A
- Application Single Phase Metering
- CAN 0
- Core Architecture N/A
- DAC Channels N/A
- DAC Resolution (bit) N/A
- Data Bus Width (bit) 32
- Data Memory Size N/A
- Device Core MAXQ30
- Ethernet 0
- Ethernet Interface Type N/A
- Ethernet Speed N/A
- External Memory Interface N/A
- External Memory Speed N/A
- Family Name MAX71315
- I2C 1
- I2S 0
- ISM Band N/A
- Interface Type I2C/SPI/UART
- Maximum Clock Rate (MHz) 10
- Maximum Expanded Memory Size N/A
- Maximum Power Dissipation (mW) N/A
- Maximum Speed (MHz) 10
- Maximum Storage Temperature (°C) 165
- Minimum Storage Temperature (°C) -45
- Number of ADCs Single
- Number of DACs Single
- Number of Programmable I/Os 65
- Number of Timers N/A
- PWM 2
- Process Technology N/A
- Processing Unit Microcontroller
- Program Memory Size 256KB
- Program Memory Type Flash
- Programmability Yes
- RAM Size 12KB
- SPI 2
- Solutions N/A
- Supplier Temperature Grade Extended
- Temperature Flag Opr
- Type System-On-Chip
- UART 4
- USART 0
- USB 0
- Watchdog 1
