MAX7129CQH+TD

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX7129CQH+TD_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX7129CQH+TD

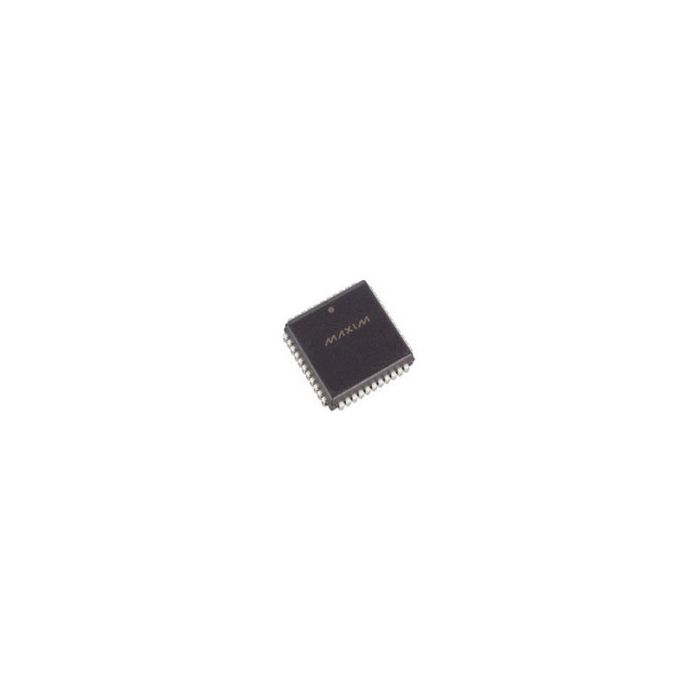

1-Channel Single ADC Dual Slope 4 1/2Digit LCD 44-Pin PLCC T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 22
  • Inventory 2*
  • PCNs 7
  • MaskPart MAX7129CQH+D%
  • IntroductionDate Feb 20, 1996

Parametry

  • Architecture Dual Slope
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity N/A
  • Digital Interface Type LCD
  • Digital Supply Support No
  • Full Scale Error N/A
  • Input Signal Type Differential
  • Input Type Voltage
  • Input Voltage N/A
  • Integral Nonlinearity Error 0.5Counts(Typ)
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 70
  • Maximum Power Dissipation (mW) 700
  • Maximum Single Supply Voltage (V) 14
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) 0
  • Minimum Single Supply Voltage (V) 6
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage N/A
  • Resolution 4 1/2Digit
  • Sample and Hold No
  • Sampling Rate N/A
  • Signal to Noise Ratio N/A
  • Single-Ended Input No
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 9
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Dual Slope 4 1/2Digit LCD 44-Pin PLCC T/R
