MAX660ESA+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX660ESA+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX660ESA+T

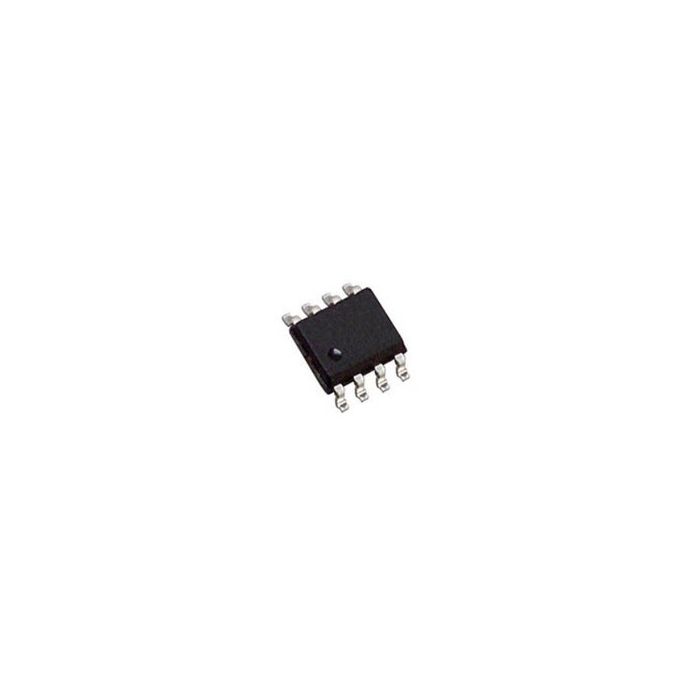

Charge Pump INV/STPUP -1.5V to -5.5V/3V to 11V 100mA 8-Pin SOIC N T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 86
  • Inventory 5
  • PCNs 8
  • MaskPart MAX660ESA+%
  • IntroductionDate Sep 01, 1996

Parametry

  • Efficiency (%) 98(Typ)
  • Function Inverting/Step Up
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 471
  • Maximum Supply Current (mA) 0.5
  • Minimum Operating Supply Voltage (V) 1.5
  • Minimum Operating Temperature (°C) -40
  • Output Current (mA) 100(Min)
  • Output Type Adjustable
  • Output Voltage (V) -1.5 to -5.5|3 to 11
  • Supplier Temperature Grade Extended Industrial
  • Switching Frequency (kHz) 10(Typ)|80(Typ)
  • Typical Operating Supply Voltage (V) N/A

Więcej informacji

Do pobrania Download
Main description Charge Pump INV/STPUP -1.5V to -5.5V/3V to 11V 100mA 8-Pin SOIC N T/R
