MAX4986ETO+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4986ETO+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4986ETO+T

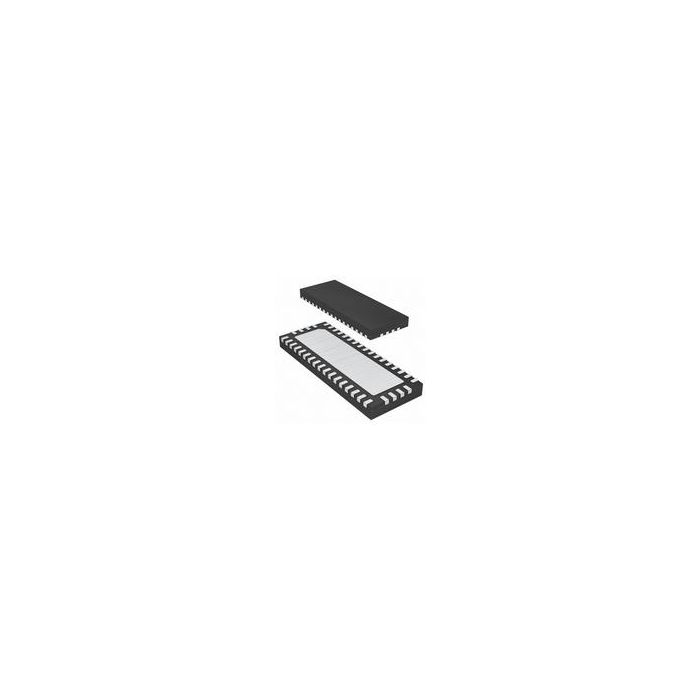

Analog Multiplexer Single 2:1 42-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 16
  • Inventory 3*
  • PCNs 7
  • MaskPart MAX4986ETO+%
  • IntroductionDate Nov 12, 2010

Parametry

  • Chip Enable Signals Yes
  • Configuration Single 2:1
  • Function Lan Multiplexer
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) N/A
  • Maximum Low Level Output Current (mA) N/A
  • Maximum On Resistance (Ohm) N/A
  • Maximum On Resistance Range (Ohm) N/A
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Bus to Bus (ns) 0.3(Typ)@3.3V
  • Maximum Single Supply Voltage (V) 3.6
  • Maximum Supply Current (mA) 230@3.6V@-40C to 85C
  • Maximum Turn-Off Time (ns) N/A
  • Maximum Turn-On Time (ns) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3
  • Multiplexer Architecture 2:1
  • Number of Channels per Chip 1
  • Number of Inputs per Chip 2
  • Number of Outputs per Chip 1
  • Output Signal Type Single
  • Polarity N/A
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features N/A
  • Supplier Temperature Grade Extended
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) N/A
  • Typical Supply Current (mA) 185@3.3V

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Single 2:1 42-Pin TQFN EP T/R
