MAX4903EBL+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4903EBL+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4903EBL+

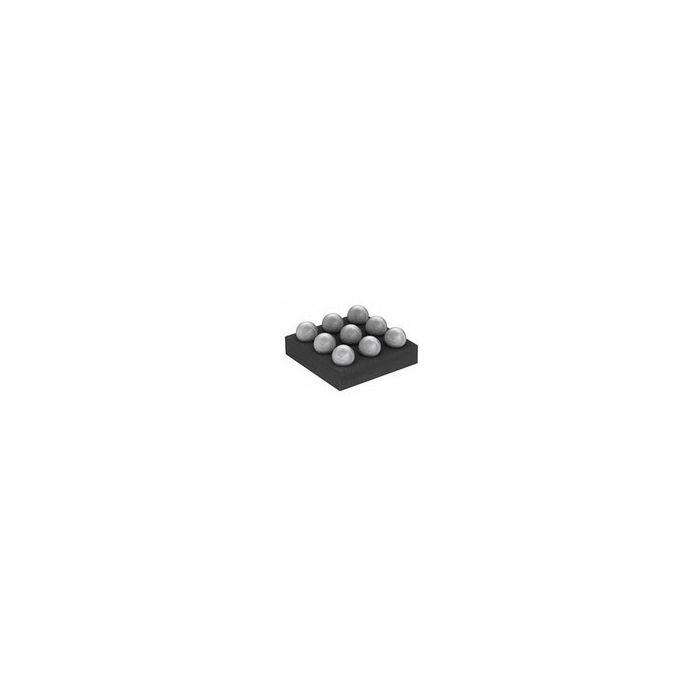

Analog Switch Single SPDT 9-Pin UCSP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 403
- Inventory 1
- PCNs 10
- GIDEP-Alerts 2
- MaskPart MAX4903EBL+%
- IntroductionDate Feb 01, 1996
Parametry
- Chip Enable Signals Yes
- Configuration Single SPDT
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 27(Typ)@3V
- Maximum High Level Output Current (mA) 30
- Maximum Low Level Output Current (mA) 30
- Maximum On Resistance (Ohm) 1@5.5V
- Maximum On Resistance Range (Ohm) 1 to 5
- Maximum Power Dissipation (mW) 412
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
- Maximum Turn-Off Time (ns) 15(Typ)@3V
- Maximum Turn-On Time (ns) 25(Typ)@3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.8
- Multiplexer Architecture N/R
- Number of Channels per Chip 1
- Number of Inputs per Chip 1
- Number of Outputs per Chip 2
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5
- Typical Supply Current (mA) 0.000001@3V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Single SPDT 9-Pin UCSP |
