MAX4899AEETE+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4899AEETE+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4899AEETE+

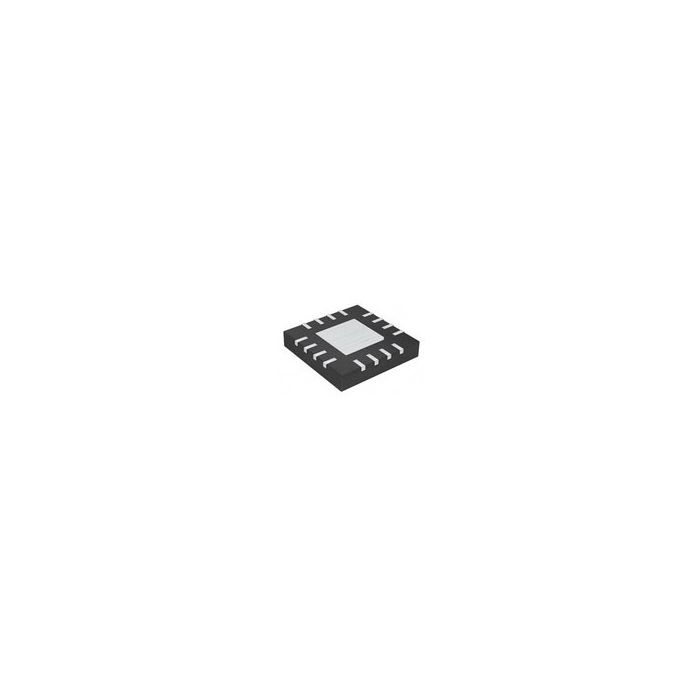

Analog Multiplexer Dual 4:1 16-Pin TQFN EP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 1
- Inventory 4
- PCNs 10
- GIDEP-Alerts 1
- MaskPart MAX4899AEETE+%
- IntroductionDate Jul 01, 2006
Parametry
- Chip Enable Signals Yes
- Configuration Dual 4:1
- Function USB Multiplexer
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) 480(Typ)
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 425(Typ)@3.3V
- Maximum High Level Output Current (mA) 120
- Maximum Low Level Output Current (mA) 120
- Maximum On Resistance (Ohm) 17@2.7V
- Maximum On Resistance Range (Ohm) 10 to 25
- Maximum Power Dissipation (mW) 1667
- Maximum Propagation Delay Bus to Bus (ns) 0.2(Typ)@3.3V
- Maximum Single Supply Voltage (V) 3.6
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 3(Typ)@3.3V
- Maximum Turn-On Time (ns) 2800(Typ)@3.3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2.7
- Multiplexer Architecture 4:1
- Number of Channels per Chip 2
- Number of Inputs per Chip 1
- Number of Outputs per Chip 1
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Fault Protected
- Supplier Temperature Grade Extended
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Dual 4:1 16-Pin TQFN EP |
