MAX4890EETJ+
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4890EETJ+_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4890EETJ+

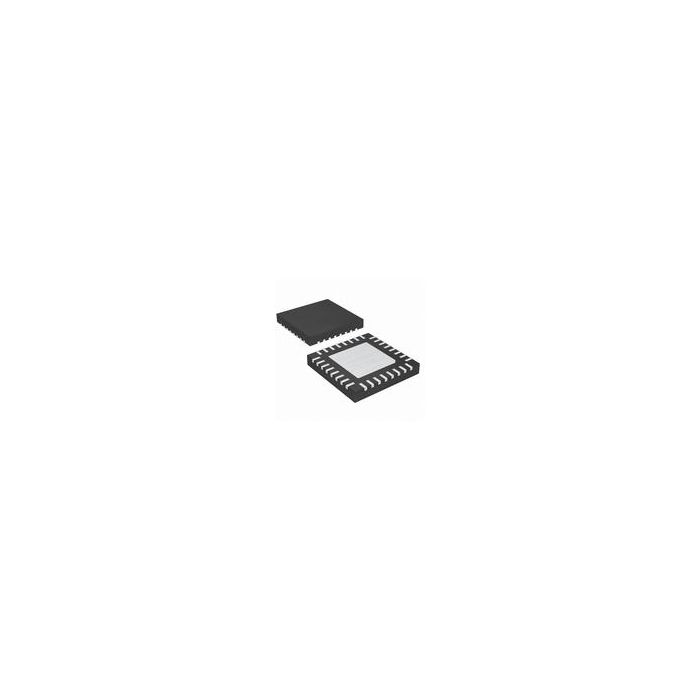

Analog Multiplexer Octal 1:2 32-Pin TQFN EP
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 3
- Inventory 2
- PCNs 10
- GIDEP-Alerts 1
- MaskPart MAX4890EETJ+%
- IntroductionDate Aug 01, 2006
Parametry
- Chip Enable Signals Yes
- Configuration Octal 1:2
- Function General
- Input Signal Type Differential
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 650(Typ)@3.3V
- Maximum High Level Output Current (mA) 40
- Maximum Low Level Output Current (mA) 40
- Maximum On Resistance (Ohm) 5.5@3V
- Maximum On Resistance Range (Ohm) 5 to 10
- Maximum Power Dissipation (mW) 2760
- Maximum Propagation Delay Bus to Bus (ns) 0.1(Typ)@3.3V
- Maximum Single Supply Voltage (V) 3.6
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 50@3.6V@-40C to 85C
- Maximum Turn-On Time (ns) 50@3.6V@-40C to 85C
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 3
- Multiplexer Architecture 1:2
- Number of Channels per Chip 8
- Number of Inputs per Chip 8
- Number of Outputs per Chip 16
- Output Signal Type Differential
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features N/A
- Supplier Temperature Grade Extended
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) N/A
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Multiplexer Octal 1:2 32-Pin TQFN EP |
