MAX4887ETE+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4887ETE+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4887ETE+T

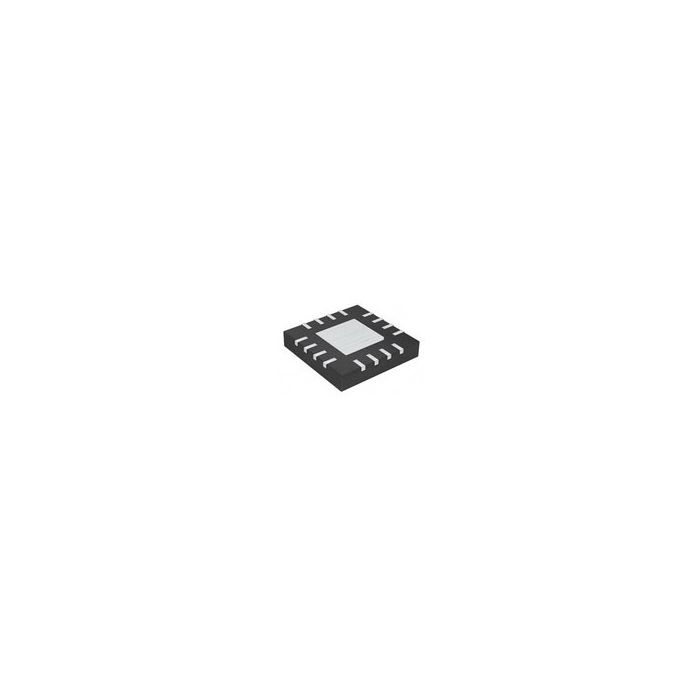

Analog Multiplexer Triple 2:1 16-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 120
  • Inventory 1
  • PCNs 9
  • MaskPart MAX4887ETE+%
  • IntroductionDate Feb 01, 2006

Parametry

  • Chip Enable Signals Yes
  • Configuration Triple 2:1
  • Function Video Switch
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 500(Typ)@3.3V|500(Typ)@5V
  • Maximum High Level Output Current (mA) 240
  • Maximum Low Level Output Current (mA) 240
  • Maximum On Resistance (Ohm) 7.5@5V
  • Maximum On Resistance Range (Ohm) 5 to 10
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1250
  • Maximum Propagation Delay Bus to Bus (ns) 400@3.3V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) N/A
  • Maximum Turn-Off Time (ns) N/A
  • Maximum Turn-On Time (ns) 25000@3.3V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3
  • Multiplexer Architecture 2:1
  • Number of Channels per Chip 3
  • Number of Inputs per Chip 6
  • Number of Outputs per Chip 3
  • Output Signal Type Single
  • Polarity N/A
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) 10
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Extended
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Triple 2:1 16-Pin TQFN EP T/R
