MAX4886ETO+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4886ETO+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4886ETO+T

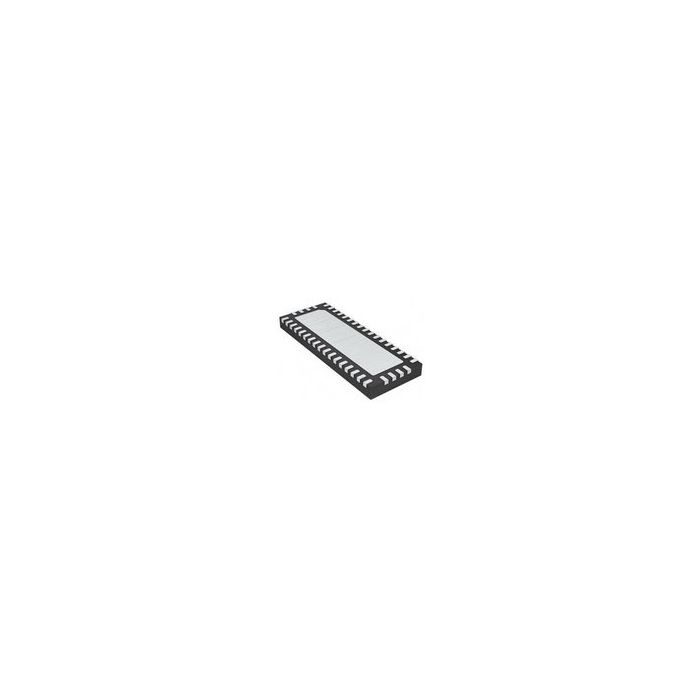

Analog Switch Quad SPDT 42-Pin TQFN EP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 153
  • Inventory 3
  • PCNs 7
  • MaskPart MAX4886ETO+%
  • IntroductionDate Apr 01, 2007

Parametry

  • Chip Enable Signals Yes
  • Configuration Quad SPDT
  • Function Video Switch
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 2600(Typ)@3.3V
  • Maximum High Level Output Current (mA) 120
  • Maximum Low Level Output Current (mA) 120
  • Maximum On Resistance (Ohm) 11@3V
  • Maximum On Resistance Range (Ohm) 10 to 25
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 2857.1
  • Maximum Propagation Delay Bus to Bus (ns) 0.1@3.3V
  • Maximum Single Supply Voltage (V) 3.6
  • Maximum Supply Current (mA) N/A
  • Maximum Turn-Off Time (ns) N/A
  • Maximum Turn-On Time (ns) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 3
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 4
  • Number of Inputs per Chip 4
  • Number of Outputs per Chip 8
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features N/A
  • Supplier Temperature Grade Extended
  • Switch Architecture SPDT
  • Switch Control Logic Active Low/High
  • Switch Normal Position NO/NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Switch Quad SPDT 42-Pin TQFN EP T/R
