MAX4885ETJ+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4885ETJ+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4885ETJ+T

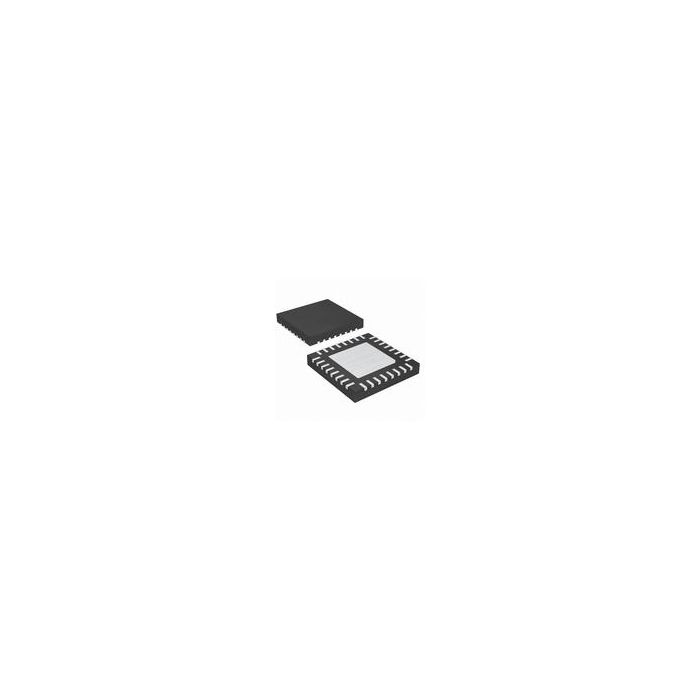

Analog Switch/Analog Multiplexer Seven 2:1 32-Pin TQFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 2
- Inventory 4
- PCNs 10
- GIDEP-Alerts 1
- MaskPart MAX4885ETJ+%
- IntroductionDate May 01, 2006
Parametry
- Chip Enable Signals Yes
- Configuration Seven 2:1
- Function General
- Input Signal Type Single
- Latch-Up Proof No
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 350(Typ)@5V
- Maximum High Level Output Current (mA) 16@5V@-40C to 85C
- Maximum Low Level Output Current (mA) 16@5V@-40C to 85C
- Maximum On Resistance (Ohm) 20@5V
- Maximum On Resistance Range (Ohm) 10 to 25
- Maximum Power Dissipation (mW) 1702
- Maximum Propagation Delay Bus to Bus (ns) 100(Typ)@5V
- Maximum Single Supply Voltage (V) 5.5
- Maximum Supply Current (mA) N/A
- Maximum Turn-Off Time (ns) 100(Typ)@5V
- Maximum Turn-On Time (ns) 7000@5V@-40C to 85C
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.5
- Multiplexer Architecture 2:1
- Number of Channels per Chip 7
- Number of Inputs per Chip 14
- Number of Outputs per Chip 7
- Output Signal Type Single
- Polarity N/A
- Power Supply Type Single
- Propagation Delay Test Condition (pF) 250@5V
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture N/R
- Switch Control Logic N/R
- Switch Normal Position N/R
- Type Analog Switch|Analog Multiplexer
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 5
- Typical Supply Current (mA) N/A
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch/Analog Multiplexer Seven 2:1 32-Pin TQFN EP T/R |
