MAX487CSA
| Do pobrania | Download |
|---|---|
| Main description | Single Transmitter/Receiver RS-422/RS-485 8-Pin SOIC N |

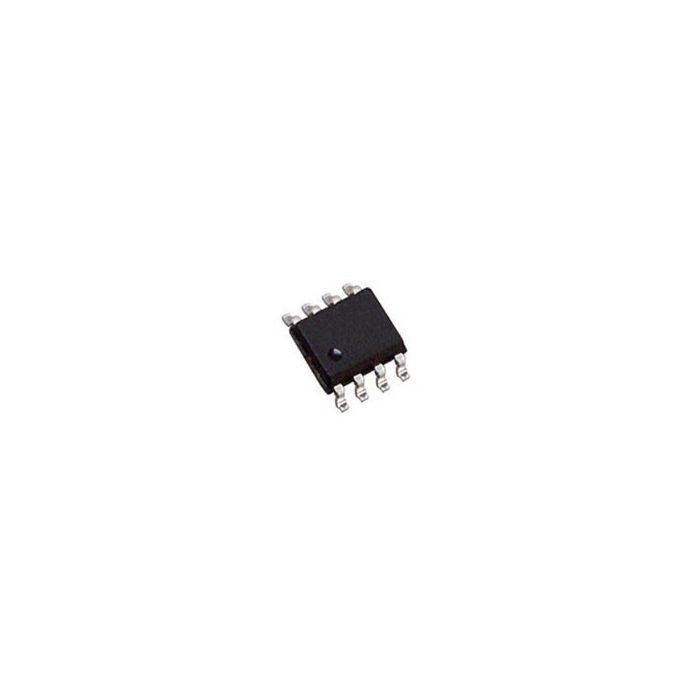

Single Transmitter/Receiver RS-422/RS-485 8-Pin SOIC N
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSNo (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 62
- Inventory 1
- PCNs 8
- MaskPart MAX487CSA%
- IntroductionDate Feb 01, 1996
Parametry
- Charge Pump No
- Data Rate 250Kbps(Min)
- Data Transmission Topology Multidrop|Multipoint
- Driving Mode 3-State
- External Capacitor Capacitance (uF) N/R
- Fail Safe Open/Short
- Function Line Transceiver
- Input Logic Level TTL
- Interface Standards RS-422|RS-485
- Maximum Dual Supply Voltage (V) N/R
- Maximum Single Supply Voltage (V) 5.25
- Maximum Storage Temperature (°C) 160
- Maximum Supply Current (mA) 0.4
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 4.75
- Minimum Storage Temperature (°C) -65
- Number of Drivers per Line 1@RS-422|128@RS-485
- Number of External Capacitors N/R
- Number of Receiver Enables 1
- Number of Receivers 1
- Number of Receivers per Line 10@RS-422|128@RS-485
- Number of Transceivers 1
- Number of Transmitter Enables 1
- Number of Transmitters 1
- Output Logic Level TTL
- Power Down Mode Shutdown
- Power Supply Type Single
- Receiver Communication Type RS-422|RS-485
- Receiver Signal Type Differential
- Supplier Temperature Grade Commercial
- Transmitter Communication Type RS-422|RS-485
- Transmitter Signal Type Differential
- Typical Dual Supply Voltage (V) N/R
- Typical Shutdown Current (uA) 0.1
- Typical Single Supply Voltage (V) 5
