MAX4764ETB+

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4764ETB+_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4764ETB+

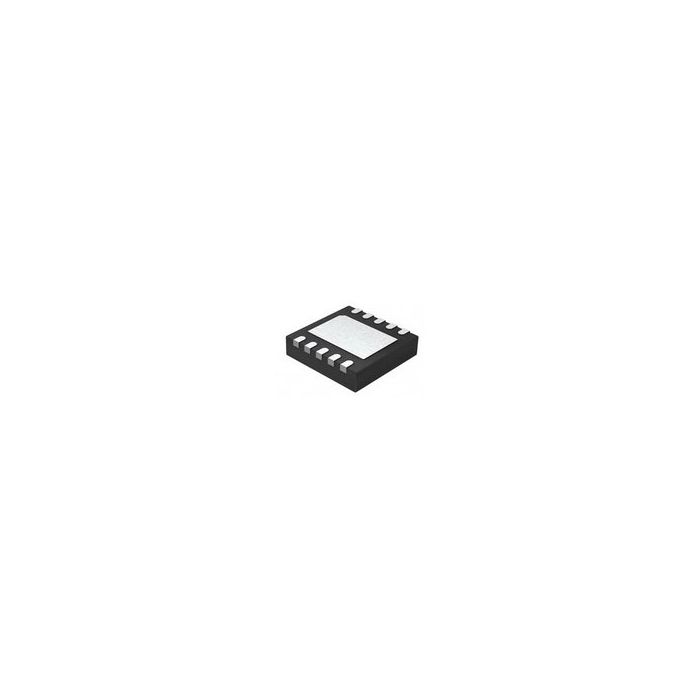

Analog Switch Dual SPDT 10-Pin TDFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 334
  • Inventory 2*
  • PCNs 12
  • GIDEP-Alerts 3
  • MaskPart MAX4764ETB+%
  • IntroductionDate Jan 01, 2004

Parametry

  • Chip Enable Signals Yes
  • Configuration Dual SPDT
  • Function Audio Switch
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 27(Typ)@3V
  • Maximum High Level Output Current (mA) 150
  • Maximum Low Level Output Current (mA) 150
  • Maximum On Resistance (Ohm) 0.85@2.7V
  • Maximum On Resistance Range (Ohm)
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1951
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
  • Maximum Turn-Off Time (ns) 70@2.7V
  • Maximum Turn-On Time (ns) 80@2.7V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.8
  • Minimum Storage Temperature (°C) -65
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 2
  • Number of Inputs per Chip 2
  • Number of Outputs per Chip 4
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Extended
  • Switch Architecture SPDT
  • Switch Control Logic Active Low/High
  • Switch Normal Position NO/NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) 0.00001@5.5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Dual SPDT 10-Pin TDFN EP
