MAX4755ETE

ProducentMaxim IntegratedEURoHSNo (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4755ETE_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4755ETE

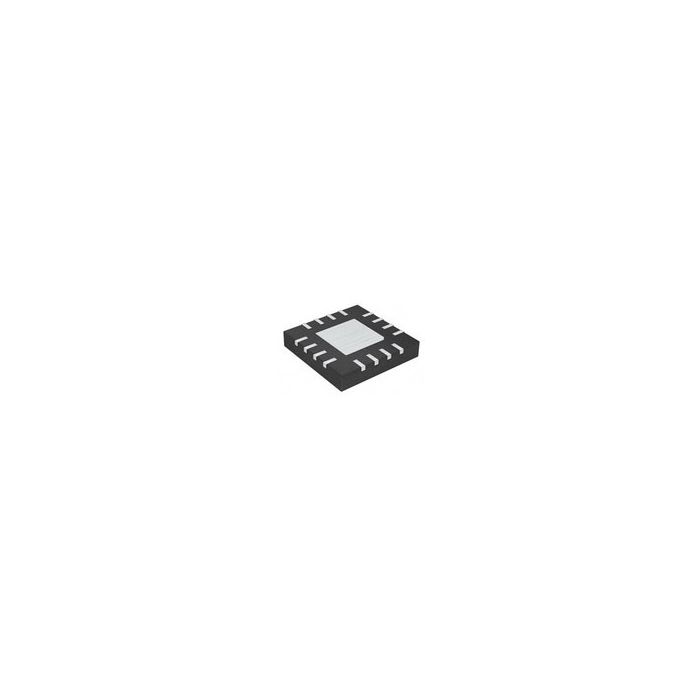

Analog Switch Dual DPDT 16-Pin TQFN EP

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSNo (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 17
  • PCNs 7
  • MaskPart MAX4755ETE%
  • IntroductionDate Aug 01, 2003

Parametry

  • Chip Enable Signals Yes
  • Configuration Dual DPDT
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) 10(Typ)@3V
  • Maximum High Level Output Current (mA) 300
  • Maximum Low Level Output Current (mA) 300
  • Maximum On Resistance (Ohm) 12.5@2.7V
  • Maximum On Resistance Range (Ohm) 10 to 25
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 1349
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) 0.002@5.5V@-40C to 85C
  • Maximum Turn-Off Time (ns) 50@2.7V
  • Maximum Turn-On Time (ns) 140@2.7V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.8
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 2
  • Number of Inputs per Chip 4
  • Number of Outputs per Chip 8
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Extended
  • Switch Architecture DPDT
  • Switch Control Logic Active Low/High
  • Switch Normal Position NO/NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) 0.0002@5.5V

Więcej informacji

Do pobrania Download
Main description Analog Switch Dual DPDT 16-Pin TQFN EP
