MAX4753EUD+T

ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
MAX4753EUD+T_MAXIM_INTEGRATED
0,00 zł

Zapytaj o ten produkt

Opis / MAX4753EUD+T

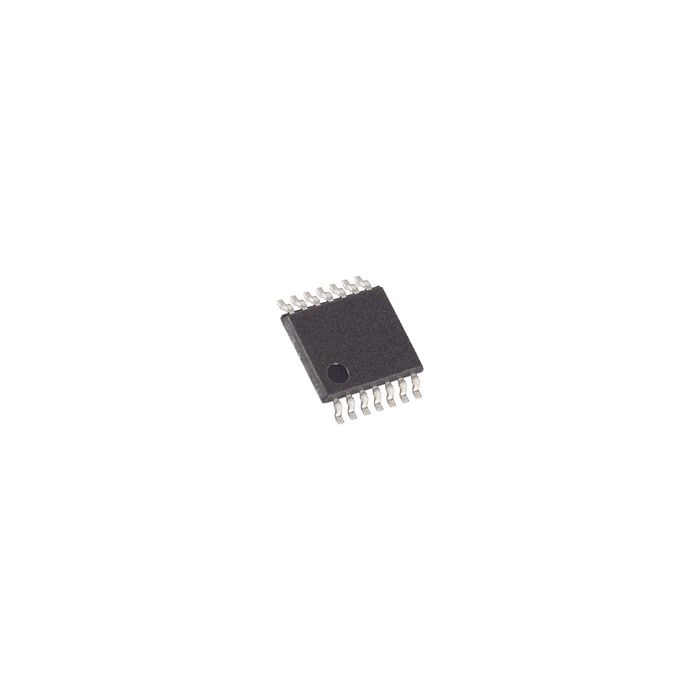

Analog Switch Quad SPST 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentMaxim Integrated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 37
  • Inventory 2*
  • PCNs 7
  • MaskPart MAX4753EUD+%
  • IntroductionDate Apr 01, 2002

Parametry

  • Chip Enable Signals Yes
  • Configuration Quad SPST
  • Function General
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (25°C) @ Vcc (MHz) N/A
  • Maximum High Level Output Current (mA) 100
  • Maximum Low Level Output Current (mA) 100
  • Maximum On Resistance (Ohm) 2.5@1.8V
  • Maximum On Resistance Range (Ohm) 1 to 5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 727
  • Maximum Propagation Delay Bus to Bus (ns) N/A
  • Maximum Single Supply Voltage (V) 3.6
  • Maximum Supply Current (mA) 0.001@3.6V@-40C to 85C
  • Maximum Turn-Off Time (ns) 25@3.6V
  • Maximum Turn-On Time (ns) 35@1.8V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 1.6
  • Multiplexer Architecture N/R
  • Number of Channels per Chip 4
  • Number of Inputs per Chip 4
  • Number of Outputs per Chip 4
  • Output Signal Type Single
  • Polarity Non-Inverting
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) N/A
  • Special Features Break-Before-Make
  • Supplier Temperature Grade Extended
  • Switch Architecture SPST
  • Switch Control Logic Active Low/High
  • Switch Normal Position NO/NC
  • Type Analog Switch
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Switch Quad SPST 14-Pin TSSOP T/R
