MAX4750EUD+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4750EUD+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4750EUD+T

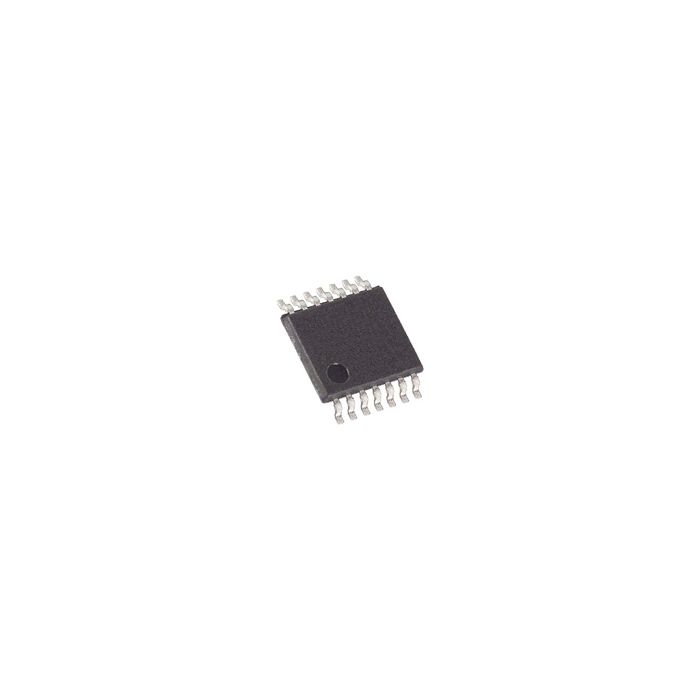

Analog Switch Dual SPDT 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 5
- Inventory 1*
- PCNs 7
- GIDEP-Alerts 1
- MaskPart MAX4750EUD+%
- IntroductionDate Oct 01, 2002
Parametry
- Chip Enable Signals Yes
- Configuration Dual SPDT
- Function General
- Input Signal Type Single
- Logic Family N/A
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 250(Typ)@3V|250(Typ)@5V
- Maximum High Level Output Current (mA) 10
- Maximum Low Level Output Current (mA) 10
- Maximum On Resistance (Ohm) 50@2.7V
- Maximum On Resistance Range (Ohm) 45 to 60
- Maximum Power Dissipation (mW) 727
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 11
- Maximum Supply Current (mA) 0.001@5.5V@-40C to 85C
- Maximum Turn-Off Time (ns) 60@3V
- Maximum Turn-On Time (ns) 150@3V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 2
- Multiplexer Architecture N/R
- Number of Channels per Chip 2
- Number of Inputs per Chip 4
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade Extended
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3|5|9
- Typical Supply Current (mA) 0.0000001@5V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Dual SPDT 14-Pin TSSOP T/R |
