MAX4736EGC+T
ProducentMaxim IntegratedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
- SKU
- MAX4736EGC+T_MAXIM_INTEGRATED
0,00 zł
Opis / MAX4736EGC+T

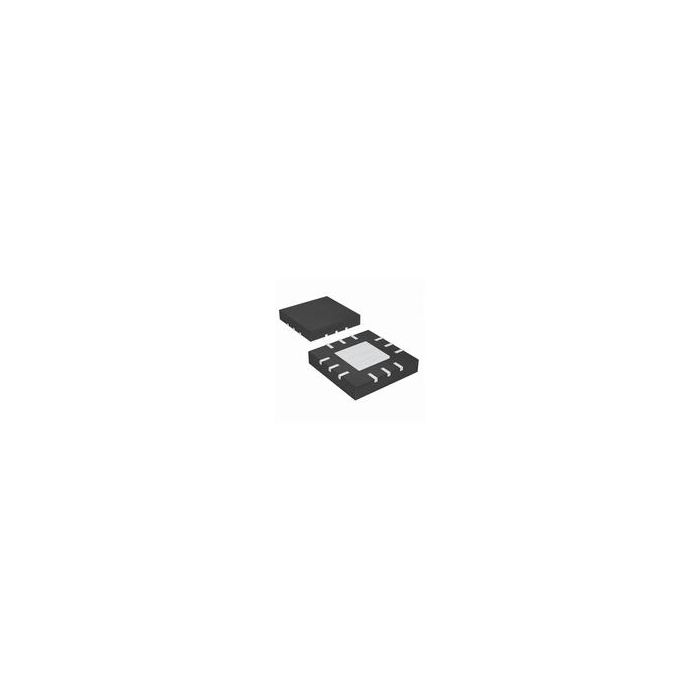

Analog Switch Dual SPDT 12-Pin QFN EP T/R
Informacje podstawowe
- ProducentMaxim Integrated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 297
- Inventory 1
- PCNs 9
- GIDEP-Alerts 1
- MaskPart MAX4736EGC+%
- IntroductionDate Apr 01, 2002
Parametry
- Chip Enable Signals Yes
- Configuration Dual SPDT
- Function General
- Input Signal Type Single
- Maximum Data Rate (Mbps) N/A
- Maximum Dual Supply Voltage (V) N/R
- Maximum Frequency (25°C) @ Vcc (MHz) 130(Typ)@3V
- Maximum High Level Output Current (mA) 300
- Maximum Low Level Output Current (mA) 300
- Maximum On Resistance (Ohm) 2@1.8V
- Maximum On Resistance Range (Ohm) 1 to 5
- Maximum Power Dissipation (mW) 1176
- Maximum Propagation Delay Bus to Bus (ns) N/A
- Maximum Single Supply Voltage (V) 3.6
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) 0.001@3.6V@-40C to 85C
- Maximum Turn-Off Time (ns) 25@1.8V
- Maximum Turn-On Time (ns) 30@1.8V
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 1.6
- Minimum Storage Temperature (°C) -65
- Multiplexer Architecture N/R
- Number of Channels per Chip 2
- Number of Inputs per Chip 2
- Number of Outputs per Chip 4
- Output Signal Type Single
- Polarity Non-Inverting
- Power Supply Type Single
- Propagation Delay Test Condition (pF) N/A
- Special Features Break-Before-Make
- Supplier Temperature Grade N/A
- Switch Architecture SPDT
- Switch Control Logic Active Low/High
- Switch Normal Position NO/NC
- Type Analog Switch
- Typical Dual Supply Voltage (V) N/R
- Typical Single Supply Voltage (V) 3
- Typical Supply Current (mA) 0.000006@3.6V
Więcej informacji
| Do pobrania | Download |
|---|---|
| Main description | Analog Switch Dual SPDT 12-Pin QFN EP T/R |
